Engine displacement
200
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Frame
6

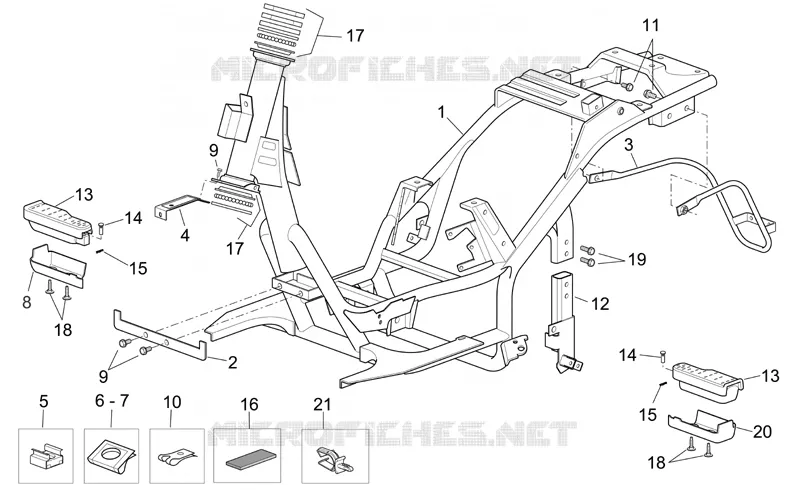

Parts Diagram
Parts Catalog
Rear body III
by
Carburettor II
Frame
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
17
17
18
18
19
20
1
Frame with electro-coating
AP8146880
Not Available
2
Front shield connect.
AP8134484
Not Available
3
Rear bow
AP8146879
Not Available
4
Front shield support
AP8146892
Not Available
5
Captive nut M6
AP8152313
£2,48 Unit Price incl. VAT
6
Clip M6
AP8102376
Not Available
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
8
RH rear footrests cover
AP8146611
£21,53 Unit Price incl. VAT
8
Hex threaded insert
AP8102902
£1,88 Unit Price incl. VAT
9
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
10
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
11
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
12
LH footrest support
AP8146939
Not Available
13
Rear footrests, pair
AP8146640
Not Available
14
Footrest pin
AP8135677
£14,71 Unit Price incl. VAT
15
Split pin
AP8201643
£3,43 Unit Price incl. VAT
16
Adhesive sponge
AP8117073
£45,78 Unit Price incl. VAT
17
Ball ring set, complete
AP8123794
Not Available
18
Screw w/ flange M5x12
AP8152302
Not Available
19
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
20
LH cover rear footrest
AP8146612
£21,80 Unit Price incl. VAT
