Engine displacement
200
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Front body - Front cover
6
Parts Diagram
Parts Catalog
Carburettor II
by
Fuel tank
Front body - Front cover
1
2
3
4
5
6
1
Front fairing, blue
AP8184185
Not Available
1
Front fairing, grey
AP8184196
Not Available
1
Front fairing, red
AP8184073
Not Available
2
Fairing finish
AP8178361
£30,17 Unit Price incl. VAT
3
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
4
Screw 4,2x16*
AP8152351
£0,18 Unit Price incl. VAT
5
Front fairing decal
AP8166372
Not Available
6
Front finish decal
AP8166383
Not Available

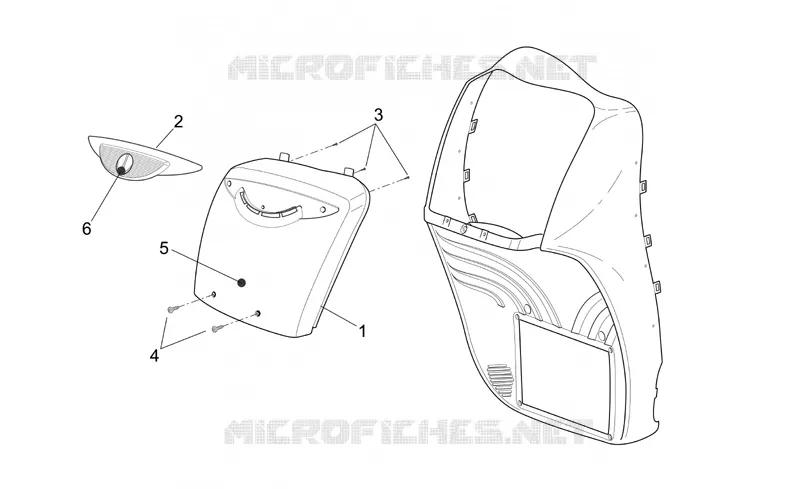

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
