Engine displacement
200
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Kaifa front fork - Hubs, sleeves
6

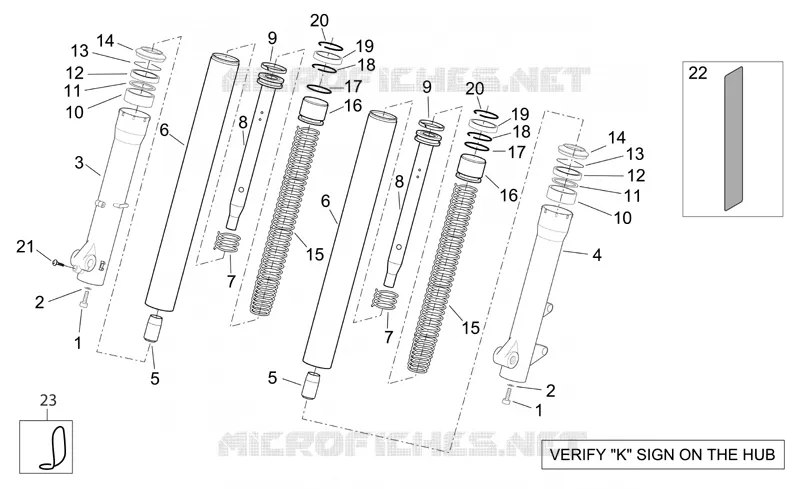

Parts Diagram
Parts Catalog
Front fork - Stem base
by
Secondary air
Kaifa front fork - Hubs, sleeves
1
1
2
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22
23
1
screw M10x30
AP8163285
£4,09 Unit Price incl. VAT
2
Seal washer
AP8163435
Not Available
3
RH sleeve
AP8163287
£147,97 Unit Price incl. VAT
4
LH sleeve
AP8163288
£147,97 Unit Price incl. VAT
5
Stroke limit stop
AP8163289
£15,34 Unit Price incl. VAT
6
Sleeve
AP8163290
£102,22 Unit Price incl. VAT
7
Return spring
AP8163291
£7,54 Unit Price incl. VAT
8
Shock absorber
AP8163292
£24,62 Unit Price incl. VAT
9
Ring
AP8163293
Not Available
10
Bush
AP8163294
Not Available
11
Oil seal washer
AP8163295
Not Available
12
Oil seal
AP8163296
£15,11 Unit Price incl. VAT
13
Stop ring
AP8163297
Not Available
14
Dust cover
AP8163298
£12,62 Unit Price incl. VAT
15
Spring
AP8163299
Not Available
16
Cover
AP8163300
Not Available
17
O-ring
AP8163301
Not Available
18
Stop ring
AP8163302
Not Available
19
Cover
AP8163303
£5,90 Unit Price incl. VAT
20
Stop ring
AP8163304
Not Available
21
screw
AP8163305
£2,03 Unit Price incl. VAT
22
Guard decal
AP8167127
Not Available
23
Cable-guide
AP8121856
£13,28 Unit Price incl. VAT
