Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Front caliper
by
Acc. - Mechanics anti-theft
Rear body I
1
2
3
4
5
5
6
7
7
8
9
10
11
12
1
Inspection cover
AP8168878
Not Available
2
Undersaddle, grey
AP8184197
Not Available
2
Undersaddle, red
AP8184074
Not Available
2
Undersaddle blue
AP8184186
Not Available
3
Die cut protection
AP8178366
Not Available
4
Fuel tank cover
AP8178367
Not Available
5
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
6
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
7
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
8
Self-locking nut M5
AP8152306
Not Available
9
Fixing pin
AP8144109
£10,37 Unit Price incl. VAT
10
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
11
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
12
Rear fairing decal "Scarabeo"
AP8177059
Not Available

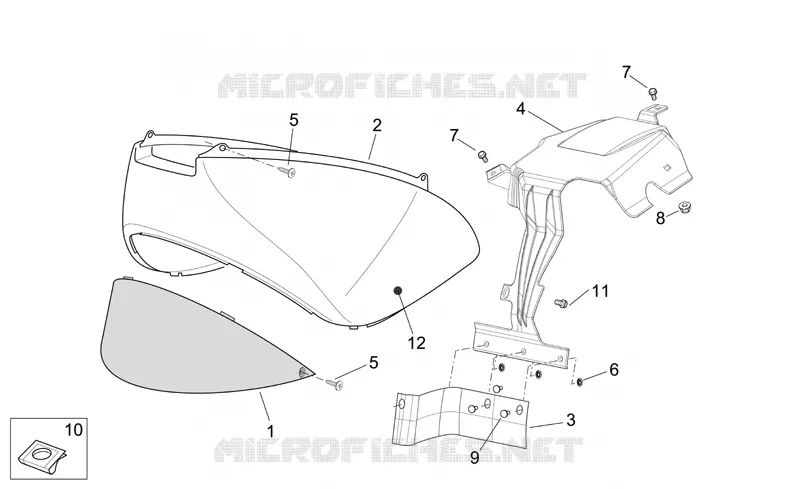

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
