1
Engine displacement
650
2
Model
V65
3
Year
1982
4
Trim
V 65 Custom
5
Parts Catalog
Footrests-Stands
6
Parts Diagram
Parts Catalog
Windscreen-bumpers-bags
by
Wheels
Footrests-Stands
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
screw
GU98052565
£4,44 Unit Price incl. VAT
2
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
3
Nut
GU92602210
Not Available
4
Bushing 19 mm
GU18252050
Not Available
5
RH craddle arm
GU19420320
Not Available
6
LH craddle arm
GU19422120
Not Available
7
Nut
GU92602205
£0,96 Unit Price incl. VAT
8
Hex screw
GU98054322
£0,40 Unit Price incl. VAT
9
Central stand
GU19430360
Not Available
10
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT
11
Lateral stand spring
GU12434001
Not Available
12
screw
GU98054530
£1,91 Unit Price incl. VAT
13
Spacer
GU91181114
£22,98 Unit Price incl. VAT
14
Spring
GU94322215
£10,33 Unit Price incl. VAT
15
Washer
GU95000210
Not Available
16
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
17
Side arm
GU19432060
Not Available
18
Lockup rubber
GU19433000
Not Available
19
Pin
GU99105129
Not Available
20
Spring
GU19434000
Not Available
21
RH pipe
GU39440700
Not Available
22
LH pipe
GU39441800
Not Available
23
screw
GU98820430
Not Available
24
Nut
GU92602208
Not Available
25
Front footrest
GU39443200
Not Available
26
Rear footrest
GU61442300
Not Available
27
Hex screw M10X22
GU98054522
Not Available
28
Notched washer
GU95021110
Not Available
29
Nut
GU92602410
£0,96 Unit Price incl. VAT
30
Pin M10x250
GU53429500
£35,46 Unit Price incl. VAT
31
Bushing
GU19017000
£10,75 Unit Price incl. VAT

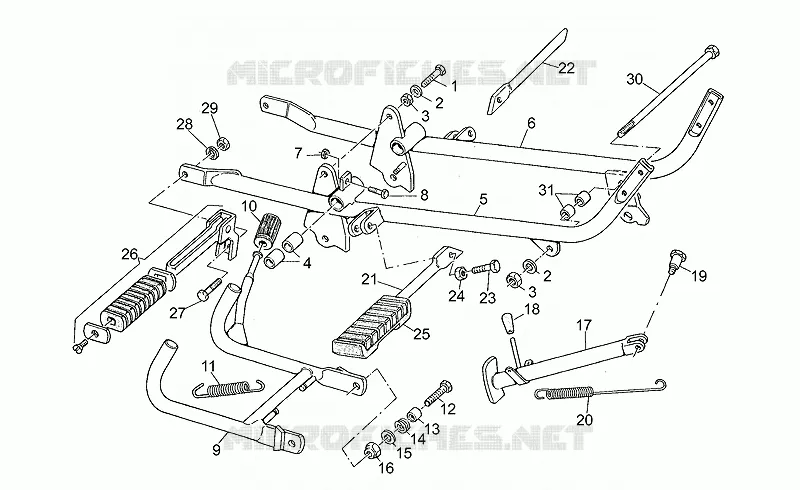

Find the detailed Footrests-Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 65 Custom

Battery

Battery

for V 65 Custom from 1982

Body

Body

for V 65 Custom from 1982

Rear bevel gear

Rear bevel gear

for V 65 Custom from 1982

Dashboard-controls

Dashboard-controls

for V 65 Custom from 1982

Headlight

Headlight

for V 65 Custom from 1982

Swing arm-rear wh., alloy

Swing arm-rear wh., alloy

for V 65 Custom from 1982

Electrical system

Electrical system

for V 65 Custom from 1982

RH Front brake system

RH Front brake system

for V 65 Custom from 1982

Front LH/rear brake system

Front LH/rear brake system

for V 65 Custom from 1982

Windscreen-bumpers-bags

Windscreen-bumpers-bags

for V 65 Custom from 1982

Footrests-Stands

Footrests-Stands

for V 65 Custom from 1982

Wheels

Wheels

for V 65 Custom from 1982

Front shock absorber

Front shock absorber

for V 65 Custom from 1982

Front/rear shock absorber

Front/rear shock absorber

for V 65 Custom from 1982

Frame

Frame

for V 65 Custom from 1982

Drive shaft

Drive shaft

for V 65 Custom from 1982

Fuel supply-exhaust

Fuel supply-exhaust

for V 65 Custom from 1982

Gear box

Gear box

for V 65 Custom from 1982

Carburettors

Carburettors

for V 65 Custom from 1982

Crankcase

Crankcase

for V 65 Custom from 1982

Timing system

Timing system

for V 65 Custom from 1982

Clutch

Clutch

for V 65 Custom from 1982

Oil pump

Oil pump

for V 65 Custom from 1982

Transmission cage

Transmission cage

for V 65 Custom from 1982

Cylinder head

Cylinder head

for V 65 Custom from 1982

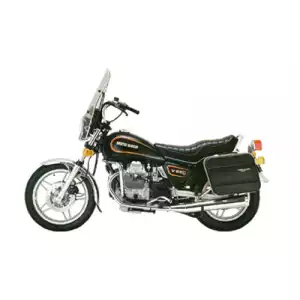

MOTO GUZZI LAVERDA SCARABEO V 65 Custom 1982
