Engine displacement
500
2
Model
V50
3
Year
1978
4
Trim
V 50 Acc. Elettronica
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Timing system
by
Bendix starter motor
Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
Belleville spring
GU19084100
Not Available
2
Pressure plate
GU19082501
Not Available
3
screw
GU98054214
Not Available
4
Washer
GU95004205
£1,13 Unit Price incl. VAT
5
Nut
GU92630105
£1,68 Unit Price incl. VAT
6
Cup
GU19083401
Not Available
7
Driven clutch disc
GU27084420
Not Available
8
Rod
GU20085720
£95,26 Unit Price incl. VAT
9
Inner body
GU14086000
£82,28 Unit Price incl. VAT
10
Thrust bearing
GU12087001
Not Available
11
Outer body
GU14086100
£71,74 Unit Price incl. VAT
12
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
13
Clutch relese shaft
GU14090201
£89,22 Unit Price incl. VAT
14
Adjuster screw
GU14090400
£42,74 Unit Price incl. VAT
15
Nut M8x1
GU92602508
Not Available
16
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
17
Pin 7x39
GU95780271
Not Available
18
Split pin
GU95500222
£1,26 Unit Price incl. VAT
19
Oil seal
GU90402736
Not Available
20
Transmission shaft Z=14
GU19210750
Not Available
20
Transmission shaft Z=13
GU19210700
Not Available
21
Gasket ring 6x16x7
GU90400616
£10,73 Unit Price incl. VAT
22
Spacer
GU19213700
Not Available
23
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
24
Nut
GU19356700
£21,74 Unit Price incl. VAT
25
Clutch cable
GU19093052
£38,34 Unit Price incl. VAT
26
Clutch drum
GU19200401
Not Available
27
Cover
GU93180220
£3,68 Unit Price incl. VAT
28
Ball bearing 20x42x12
GU92201120
£32,68 Unit Price incl. VAT
29
Bearings support Plate
GU19203400
Not Available
30
screw
GU98054314
£0,49 Unit Price incl. VAT
31
Washer 6,4x10x0,7
GU14217901
Not Available
32
screw
GU98620330
£0,49 Unit Price incl. VAT
33
screw
GU98620435
Not Available
34
Kick - start
GU19260400
Not Available
35
Hex screw M8x30
GU98052430
£1,58 Unit Price incl. VAT
36
Washer
GU95004208
£0,70 Unit Price incl. VAT
37
Starter shaft
GU19264000
Not Available
38
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
39
Oil seal
GU90401832
Not Available
40
Spring cable lever
GU61265700
Not Available
41
Clearance washer
GU19032300
£1,14 Unit Price incl. VAT
42
Circlip
GU90271018
£0,85 Unit Price incl. VAT
43
Gear rinvio Z=23
GU19211105
Not Available
43
Gear rinvio Z=25
GU19211150
Not Available
44
Gear
GU19266601
Not Available
45
Spring
GU19266200
Not Available
46
Slide piece
GU19263300
Not Available
47
screw
GU98054314
£0,49 Unit Price incl. VAT
48
Safety plate
GU19235900
Not Available
49
Special screw
GU19202600
Not Available

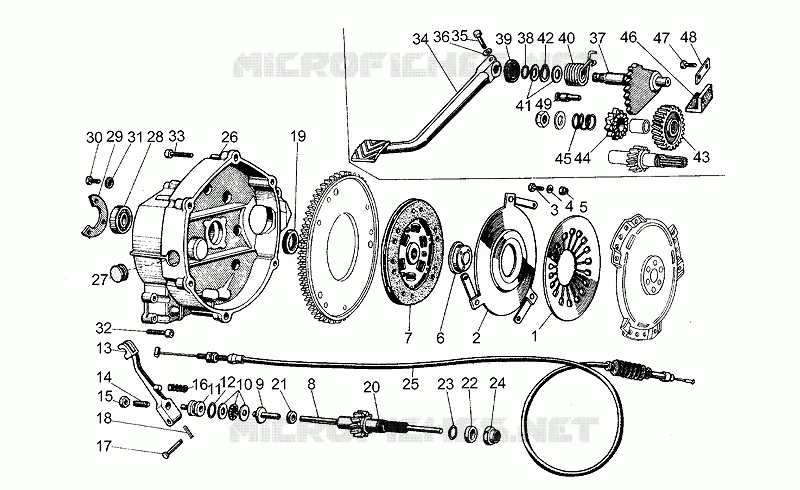

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
