1
Engine displacement
1100
2
Model
V11
3
Year
2001
4
Trim
V 11 Le Mans - Sport Naked
5
Parts Catalog

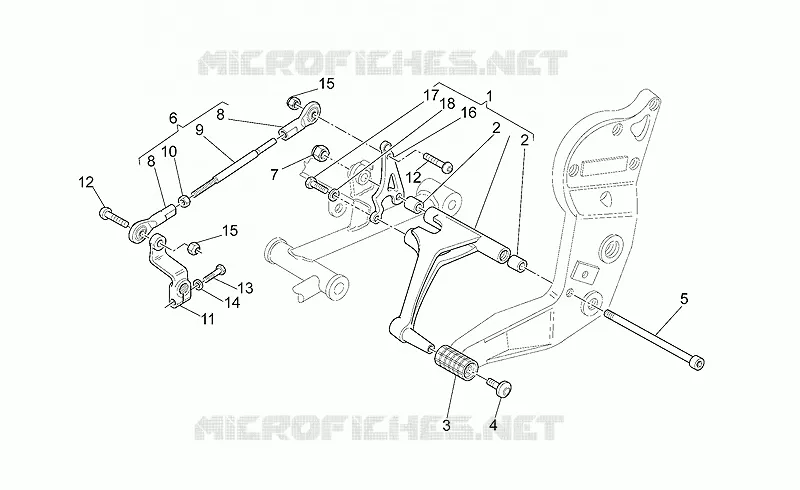

Gear lever
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Oil radiator
Gear lever
1
2
2
3
4
5
6
7
8
8
9
10
11
12
12
13
14
15
15
16
17
18
1
Complete gearchange lever
GU01250830
Not Available
2
Bush
GU04217600
£10,73 Unit Price incl. VAT
3
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
4
Hex socket screw
GU98350316
£1,26 Unit Price incl. VAT
5
screw
GU98680410
£1,93 Unit Price incl. VAT
6
Change gear tie rod compl.
GU01257830
£54,23 Unit Price incl. VAT
7
Nut
GU92630208
£1,58 Unit Price incl. VAT
8
Ball joint
GU30675300
Not Available
9
Tie rod
GU96506089
£32,32 Unit Price incl. VAT
10
Nut
GU92606206
£1,02 Unit Price incl. VAT
11
Shift lever
GU01256930
£16,15 Unit Price incl. VAT
12
Hex socket screw
GU98350318
£0,96 Unit Price incl. VAT
13
screw
GU98632322
£1,02 Unit Price incl. VAT
14
Special washer
GU61013800
£1,26 Unit Price incl. VAT
15
Nut M6
GU92630707
£2,04 Unit Price incl. VAT
16
Lever
GU01258230
Not Available
17
Hex screw M6x14
GU98084314
£1,26 Unit Price incl. VAT
18
Washer 6,4x10x0,7
GU14217901
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
