Engine displacement
1100
2
Model
V11
3
Year
2001
4
Trim
V 11 Le Mans - Sport Naked
5
Parts Catalog
Rear body
6

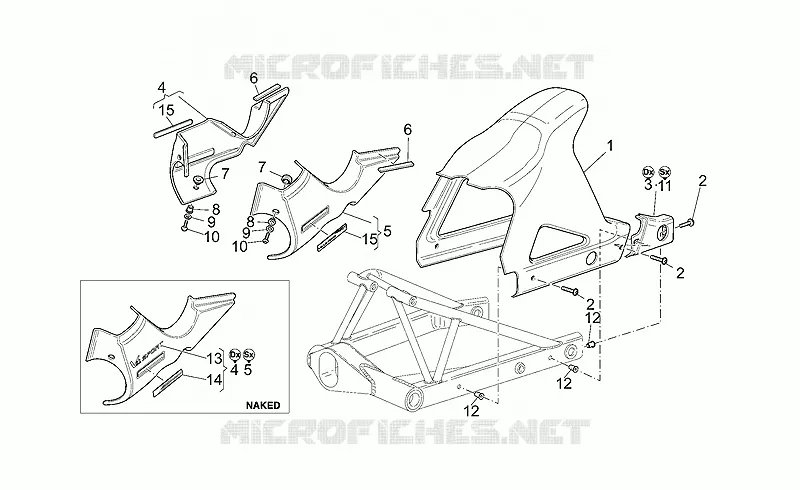

Parts Diagram
Parts Catalog
Front mudguard
by
Foot rests - Lateral stand
Rear body
1
2
2
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
12
12
13
14
15
15
1
Rear mudguard
GU01437030
Not Available
2
Screw w/ flange
GU98223520
£1,03 Unit Price incl. VAT
3
RH pin cover dark grey
GU01546363
£28,52 Unit Price incl. VAT
3
RH pin cover dark grey Guzzi
GU01546387
Not Available
3
RH pin cover, black
GU01546340
£28,54 Unit Price incl. VAT
4
Carb. RH side panel
GU01570241
Not Available
4
RH side panel, grey
GU01570261
£235,37 Unit Price incl. VAT
4
RH body panel blank
GU01570230
£140,83 Unit Price incl. VAT
4
RH side panel, grey
GU01570263
£341,66 Unit Price incl. VAT
4
RH side panel, grey
GU01570262
Not Available
4
RH side panel, grey
GU01570286
£235,37 Unit Price incl. VAT
5
Carb. LH side panel
GU01570441
Not Available
5
LH side panel, grey
GU01570287
Not Available
5
LH side panel, grey
GU01570462
£235,37 Unit Price incl. VAT
5
LH body panel blank
GU01570430
£140,83 Unit Price incl. VAT
5
LH side panel, grey
GU01570461
Not Available
5
LH side panel, grey
GU01570463
£235,37 Unit Price incl. VAT
6
Vibration-damping rubber
GU01573960
£1,98 Unit Price incl. VAT
7
Rubber spacer
GU93180710
Not Available
8
Bush
GU01576131
£8,02 Unit Price incl. VAT
9
Nylon washer
GU01577830
£1,26 Unit Price incl. VAT
10
screw
GU98370515
£2,36 Unit Price incl. VAT
11
LH pin cover, black
GU01546440
£17,06 Unit Price incl. VAT
11
LH pin cover dark grey
GU01546463
£28,54 Unit Price incl. VAT
11
Guzzi LH pin cover, grey
GU01546487
Not Available
12
Bushing
GU03742030
£5,23 Unit Price incl. VAT
13
Decal "V11 Le Mans"
GU01575940
£32,08 Unit Price incl. VAT
14
Chequered plate
GU01576060
Not Available
15
Name plate "V11 LeMans"
GU01576062
£29,16 Unit Price incl. VAT
15
Name plate "V11 Scura"
GU01575975
£15,94 Unit Price incl. VAT
