Engine displacement
1100
2
Model
V11
3
Year
2001
4
Trim
V 11 Le Mans - Sport Naked
5
Parts Catalog
Taillight
6

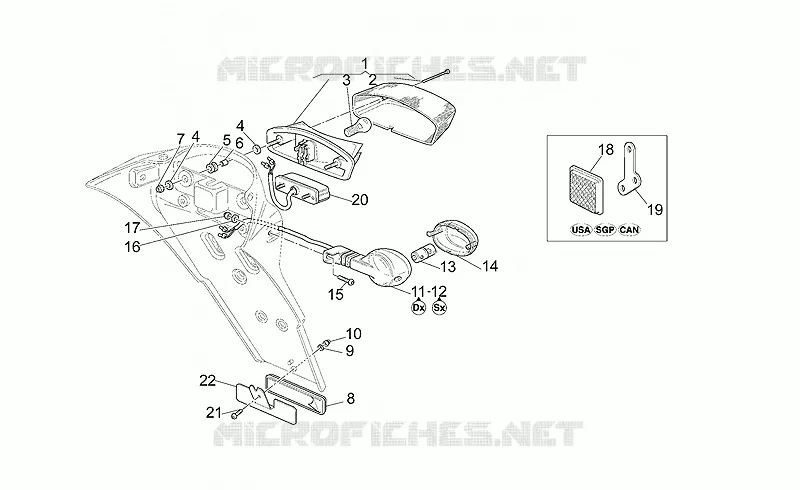

Parts Diagram
Parts Catalog
Le Mans headlight
by
Air box
Taillight
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Taillight
GU01740930
Not Available
2
Taillight lens
GU01741730
£24,50 Unit Price incl. VAT
3
Lamp
GU93450224
£7,44 Unit Price incl. VAT
4
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
5
Rubber spacer
GU91551085
Not Available
6
Spacer
GU91180608
£1,28 Unit Price incl. VAT
7
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
8
Reflector
GU31781565
£13,38 Unit Price incl. VAT
9
Nylon washer 5,5X12X1
GU30577800
£1,02 Unit Price incl. VAT
10
Nut
GU92781055
£0,76 Unit Price incl. VAT
11
Rear RH turn indicator
GU02750601
£38,65 Unit Price incl. VAT
12
Rear LH turn indicator
GU02750600
Not Available
13
Lamp
GU93450127
£3,11 Unit Price incl. VAT
14
Turn indicator lens
GU02753700
Not Available
15
Hex socket screw M6x20
GU98350320
£0,23 Unit Price incl. VAT
16
Washer 5,3x10x0,5
GU95100121
Not Available
17
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
18
Rear reflector, red
GU14781570
Not Available
19
Reflector support
GU30781820
Not Available
20
Number-plate light
GU02745200
£45,24 Unit Price incl. VAT
21
Hex socket screw
GU98230512
Not Available
22
Reflector support
GU01475330
£5,75 Unit Price incl. VAT
