1
Engine displacement
1000
2
Model
V10
3
Year
1997
4
Trim
V 10 Centauro
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork
by
Electrical system
Swing arm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Swing arm, black
GU01540200
Not Available
2
Ball bearing
GU92218418
£42,37 Unit Price incl. VAT
3
Pin
GU37547005
Not Available
4
Nut
GU30547800
£13,01 Unit Price incl. VAT
5
Shock absorber White Power
GU02550200
Not Available
6
Top screw
GU98053670
Not Available
7
Washer
GU95004213
£2,04 Unit Price incl. VAT
8
Nut
GU92630513
£3,18 Unit Price incl. VAT
9
Self-locking nut
GU92630512
£0,85 Unit Price incl. VAT
10
Lower screw
GU98610616
Not Available
11
Bracket
GU02557900
Not Available
12
Hose clamp
GU02107300
£12,64 Unit Price incl. VAT
13
screw
GU98230616
£13,40 Unit Price incl. VAT
14
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
15
Rubber protection
GU29105860
£7,90 Unit Price incl. VAT

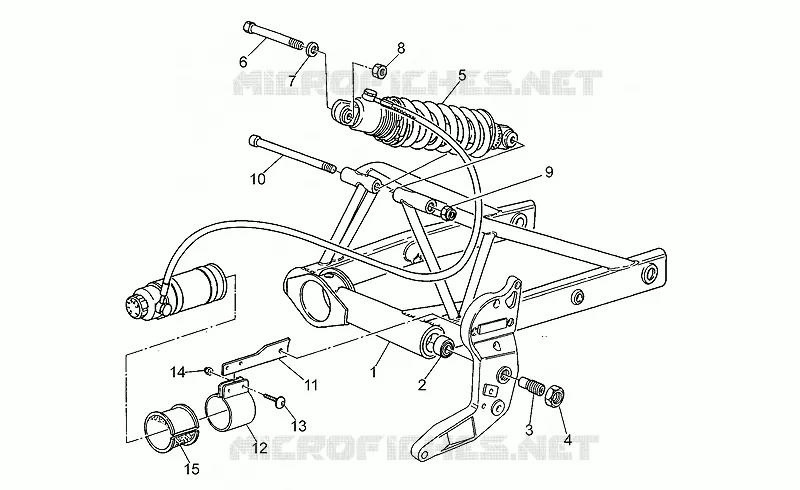

Find the detailed Swing arm MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 10 Centauro

Transmission complete I

Transmission complete I

for V 10 Centauro from 1997

Dashboard

Dashboard

for V 10 Centauro from 1997

Fuel vapour recover system

Fuel vapour recover system

for V 10 Centauro from 1997

Front lights

Front lights

for V 10 Centauro from 1997

Taillight

Taillight

for V 10 Centauro from 1997

Air filter

Air filter

for V 10 Centauro from 1997

Front fork

Front fork

for V 10 Centauro from 1997

Swing arm

Swing arm

for V 10 Centauro from 1997

Electrical system

Electrical system

for V 10 Centauro from 1997

Front brake system

Front brake system

for V 10 Centauro from 1997

Rear brake system

Rear brake system

for V 10 Centauro from 1997

Top box - Support

Top box - Support

for V 10 Centauro from 1997

Handlebar - Controls

Handlebar - Controls

for V 10 Centauro from 1997

Front mudguard

Front mudguard

for V 10 Centauro from 1997

Foot rests - Lateral stand

Foot rests - Lateral stand

for V 10 Centauro from 1997

Pillar

Pillar

for V 10 Centauro from 1997

Front wheel

Front wheel

for V 10 Centauro from 1997

Rear wheel

Rear wheel

for V 10 Centauro from 1997

Saddle-Central bod

Saddle-Central bod

for V 10 Centauro from 1997

Fuel tank

Fuel tank

for V 10 Centauro from 1997

Steering

Steering

for V 10 Centauro from 1997

Rear body - Rear fairing

Rear body - Rear fairing

for V 10 Centauro from 1997

Frame

Frame

for V 10 Centauro from 1997

Electrical system

Electrical system

for V 10 Centauro from 1997

Fuel supply

Fuel supply

for V 10 Centauro from 1997

Transmission complete II

Transmission complete II

for V 10 Centauro from 1997

Exhaust unit

Exhaust unit

for V 10 Centauro from 1997

Booster kit

Booster kit

for V 10 Centauro from 1997

Gear lever

Gear lever

for V 10 Centauro from 1997

Oil radiator

Oil radiator

for V 10 Centauro from 1997

Drive shaft

Drive shaft

for V 10 Centauro from 1997

Driven shaft

Driven shaft

for V 10 Centauro from 1997

Gear box

Gear box

for V 10 Centauro from 1997

Crank-case

Crank-case

for V 10 Centauro from 1997

Throttle body

Throttle body

for V 10 Centauro from 1997

Timing system

Timing system

for V 10 Centauro from 1997

Oil filter

Oil filter

for V 10 Centauro from 1997

Clutch

Clutch

for V 10 Centauro from 1997

Generator - Regulator

Generator - Regulator

for V 10 Centauro from 1997

Starter motor

Starter motor

for V 10 Centauro from 1997

Oil pump

Oil pump

for V 10 Centauro from 1997

Transmission cage

Transmission cage

for V 10 Centauro from 1997

Heads

Heads

for V 10 Centauro from 1997

Specific tools I

Specific tools I

for V 10 Centauro from 1997

Specific tools II

Specific tools II

for V 10 Centauro from 1997

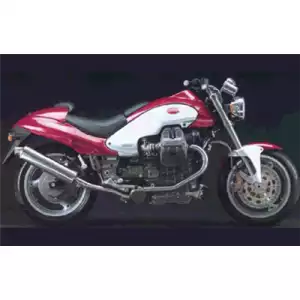

MOTO GUZZI LAVERDA SCARABEO V 10 Centauro 1997
