Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Rear body - Rear fairing
by
Electrical system
Frame
1
2
3
4
4
5
5
5
5
6
7
8
9
10
10
11
12
13
13
14
15
16
17
17
17
18
19
20
21
22
23
1
Frame
GU01400100
Not Available
2
Cradle
GU01420200
£173,05 Unit Price incl. VAT
3
Guard decal
GU02931600
£2,39 Unit Price incl. VAT
4
screw
GU98610525
£1,73 Unit Price incl. VAT
5
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
6
RH plate
GU01415750
Not Available
7
Plate connection frame
GU37420105
£103,84 Unit Price incl. VAT
8
LH plate
GU01415850
Not Available
9
Stud bolt
GU30419601
£40,84 Unit Price incl. VAT
10
Tie rod
GU92660112
£5,23 Unit Price incl. VAT
11
screw
GU98610540
£4,64 Unit Price incl. VAT
12
screw
GU98231030
£10,08 Unit Price incl. VAT
13
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
14
screw
GU98072595
£6,80 Unit Price incl. VAT
15
Gearbox connecting plate
GU37202805
£52,44 Unit Price incl. VAT
16
screw
GU98622420
Not Available
17
Washer
GU95004208
£0,70 Unit Price incl. VAT
18
Nut
GU92630508
£1,67 Unit Price incl. VAT
19
screw sp.65mm
GU98072465
Not Available
19
screw sp.60mm
GU98072460
Not Available
20
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
21
Decal "Aquilia"
GU01517700
£35,30 Unit Price incl. VAT
22
screw
GU98612635
£4,66 Unit Price incl. VAT
23
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT

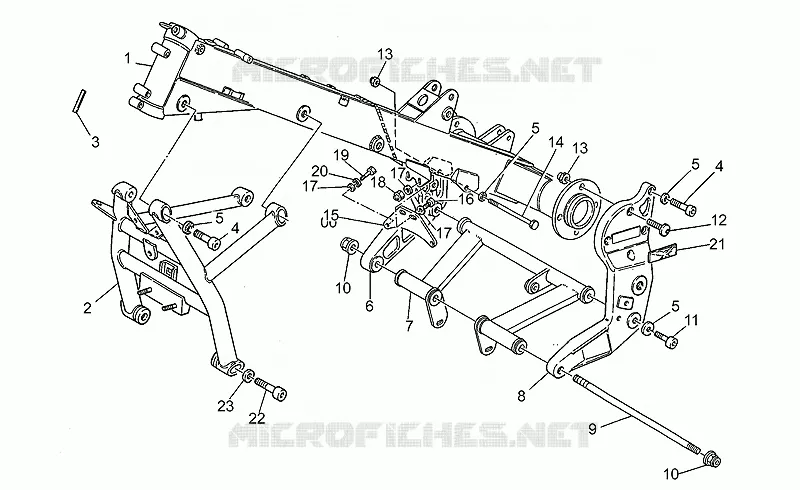

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
