Engine displacement
200
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Top box
6
Parts Diagram
Parts Catalog
Water cooler
by
Pulley assy., driven
Top box
1
2
3
3
3
3
3
3
3
4
4
4
4
4
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
9
10
11
12
13
13
13
13
14
14
15
1
Lugg.rack support, black
AP8158928
Not Available
2
Luggage rack, black
AP8158927
Not Available
3
T bush *
AP8121725
£1,88 Unit Price incl. VAT
4
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
5
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
6
Bush
AP8121332
£3,43 Unit Price incl. VAT
7
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
8
Screw M6x25
AP8702101
£1,69 Unit Price incl. VAT
9
Fixing pin
AP8702100
Not Available
10
Top box, grey
AP8158929
Not Available
10
Top box, blue
AP8168024
Not Available
10
Top box, grey
AP8168265
Not Available
10
Top box, blue
AP8168127
Not Available
10
Top box, black
AP8168018
Not Available
10
Top box, black
AP8168165
Not Available
10
Top box, green
AP8168754
Not Available
10
Top box, black
AP8178839
Not Available
10
Top box, green
AP8168039
Not Available
10
Top box, green
AP8168125
Not Available
10
Top box, blue
AP8168830
Not Available
10
Top box, grey
AP8168126
Not Available
10
Top box, grey
AP8178843
Not Available
10
Top box, red
AP8168264
Not Available
11
Seat cushion, grey
AP8129352
Not Available
11
Seat cushion, grey
AP8129353
Not Available
11
Seat cushion, black
AP8129367
Not Available
11
Seat cushion, brown
AP8129354
Not Available
12
Lock lever, black
AP8792171
Not Available
13
Rubber spacer
AP8706087
£2,95 Unit Price incl. VAT
14
Fixing pin
AP8700868
Not Available
15
Shear rivet
AP8706225
Not Available

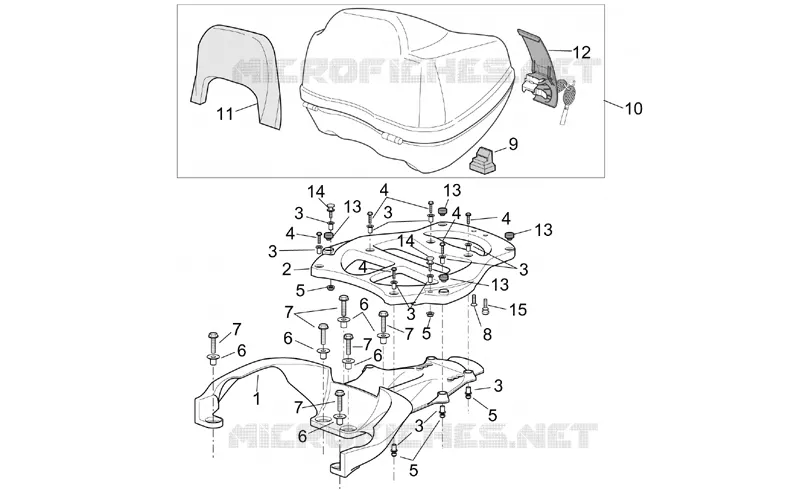

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
