Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Central body I
6
Parts Diagram
Parts Catalog
Front body - Front fairing
by
Central stand
Central body I
1
2
3
4
5
6
7
7
8
9
10
11
1
Glove comp.door, black
AP8168099
Not Available
1
Glove comp.door, black
AP8168193
Not Available
1
Glove comp.door, chamois
AP8139267
Not Available
1
Glove comp.door, ice green
AP8149074
Not Available
1
Glove comp.door, silver
AP8178744
Not Available
1
Glove comp.door, green
AP8168750
Not Available
1
Glove comp.door, m.red
AP8148235
Not Available
1
Glove comp.door, green
AP8168035
Not Available
1
Glove comp.door, grey
AP8158084
Not Available
1
Glove comp.door, grey
AP8148218
Not Available
1
Glove comp.door, a.green
AP8148252
Not Available
1
Glove comp.door, ap.black
AP8148760
Not Available
1
Glove comp.door, blue
AP8168826
Not Available
1
Glove comp.door, blue
AP8168022
Not Available
1
Glove comp.door, grey
AP8178704
Not Available
1
Glove comp.door, grey
AP8158995
Not Available
1
Glove comp.door, ch.blue
AP8148774
Not Available
2
Bag holder hook
AP8139270
Not Available
2
Bag holder hook, black
AP8158996
Not Available
3
Glove box internal grille
AP8139265
Not Available
4
Appr.data cov., grey
AP8139269
£16,10 Unit Price incl. VAT
5
Gasket
AP8144257
Not Available
6
Screw clip D4,2
AP8102782
Not Available
7
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
8
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
9
Screw 4,2x16*
AP8152351
£0,18 Unit Price incl. VAT
10
Lock nut M22x1,5
AP8102523
£9,53 Unit Price incl. VAT
11
Top box lock
AP8104647
Not Available

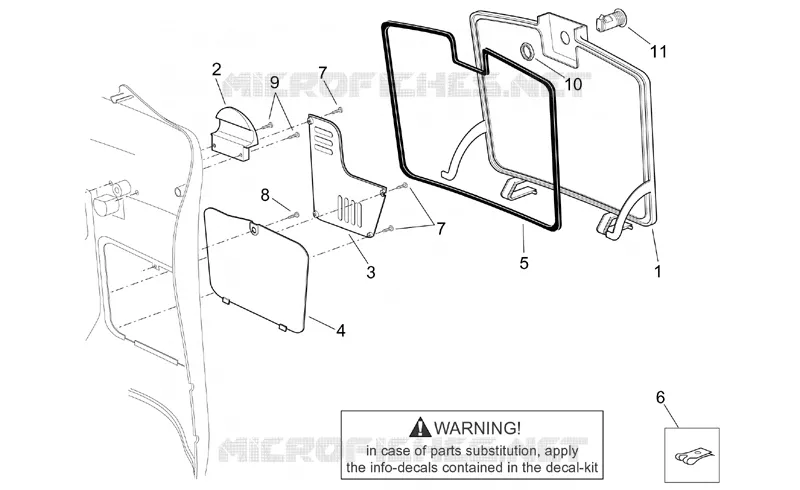

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
