Engine displacement
1200
2
Model
STELVIO
3
Year
2008
4
Trim
Stelvio
5
Parts Catalog
Driven shaft
6

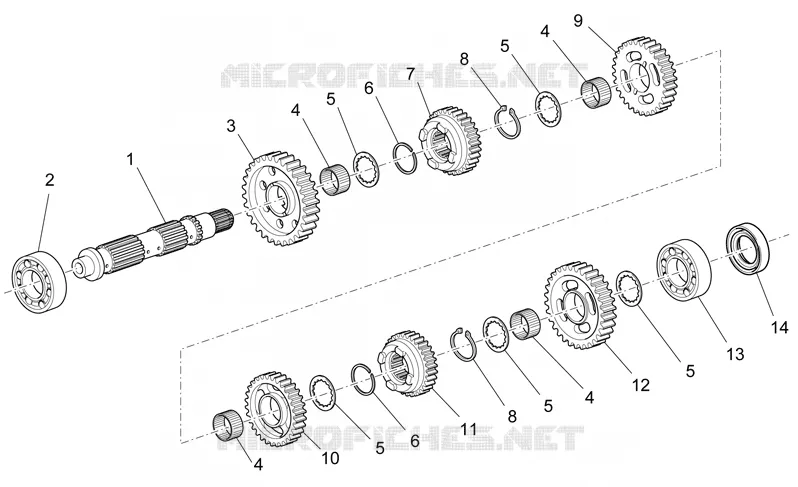

Parts Diagram
Parts Catalog
RH cylinder timing system
by
Front body - Front fairing
Driven shaft
1
2
3
4
4
4
4
5
5
5
5
5
6
6
7
8
8
9
10
11
12
13
14
1
Driven shaft
GU05213631
£433,49 Unit Price incl. VAT
2
Ball bearing 20x52x15
GU92201822
£33,05 Unit Price incl. VAT
3
Gear 1a Z=38
GU05214231
£240,14 Unit Price incl. VAT
4
Roller cage 26x30x15,6
GU92252029
£24,59 Unit Price incl. VAT
5
Clearance washer
GU05214630
£10,73 Unit Price incl. VAT
6
Snap ring 30x1,2SW
GU90271230
£5,23 Unit Price incl. VAT
7
Gear 5a Z=30
GU05214031
£263,90 Unit Price incl. VAT
8
Snap ring 30x27,9
GU90271030
£0,83 Unit Price incl. VAT
9
Gear 3a Z=31
GU05214731
£246,35 Unit Price incl. VAT
10
Gear 4a Z=29
GU05215031
£222,49 Unit Price incl. VAT
11
Gear 6a Z=25
GU05220531
£197,04 Unit Price incl. VAT
12
Gear 2a Z=34
GU05214431
£242,46 Unit Price incl. VAT
13
Ball bearing 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
14
Gasket ring 25X40X7
GU90412541
£22,12 Unit Price incl. VAT
