Engine displacement
150
2
Model
SCARABEO
3
Year
2002
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Front body - Front mudguard
6
Parts Diagram
Parts Catalog
Rear body II
by
New version air box
Front body - Front mudguard
1
2
3
4
5
6
7
8
8
8
9
9
10
11
11
12
13
14
1
Front mudguard, grey
AP8156172
Not Available
1
Front mudguard, grey
AP8126952
£124,60 Unit Price incl. VAT
1
Front mudguard, Ap. black
AP8126830
Not Available
1
Front mudguard, grey
AP8126884
Not Available
1
Front mudguard, chips blue
AP8126831
Not Available
1
Front mudguard, black
AP8156011
Not Available
1
Front mudguard, ice green
AP8126855
Not Available
1
Front mudguard, blue
AP8126953
Not Available
1
Front mudguard, blue
AP8156071
Not Available
1
Front mudguard, green
AP8126951
Not Available
1
Front mudguard, chamois
AP8126635
Not Available
1
Front mudguard, s.grey
AP8126763
Not Available
1
Front mudguard, a.green
AP8126765
Not Available
1
Front mudguard, red
AP8126950
Not Available
1
Front mudguard, m.red
AP8126764
Not Available
1
Front mudguard, green
AP8156064
Not Available
1
Front mudguard, gold
AP8126954
Not Available
1
Front mudguard, silver
AP8156173
Not Available
1
Front mudguard, grey
AP8156022
Not Available
1
Front mudguard, green
AP8156005
Not Available
1
Front mudguard, red
AP8156021
Not Available
2
Front shield lockup
AP8139605
Not Available
3
LH hub cover, grey
AP8156002
Not Available
3
LH hub cover, grey
AP8126638
Not Available
4
RH hub cover, grey
AP8126637
Not Available
4
RH hub cover, grey
AP8156001
Not Available
5
Front mudguard connect.
AP8134489
£36,32 Unit Price incl. VAT
6
Mudguard protection
AP8139727
Not Available
7
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
8
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
9
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
10
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
11
Screw 5,5x15,9*
AP8150426
£1,27 Unit Price incl. VAT
12
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT
13
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
14
Cable-guide
AP8144240
Not Available

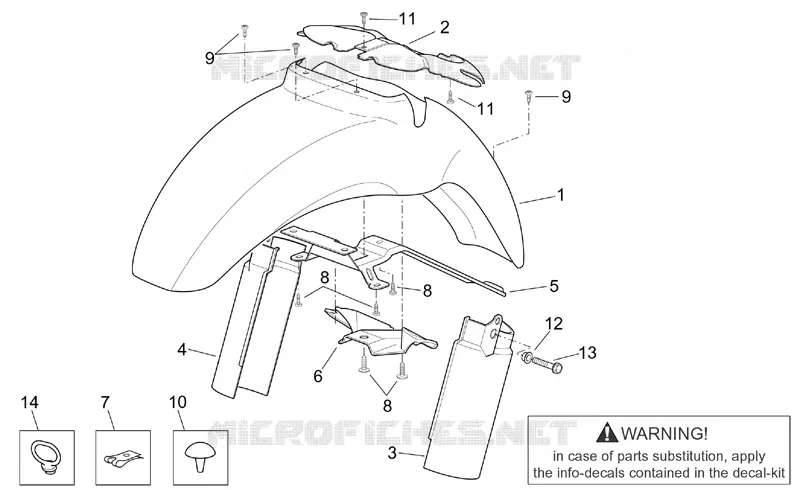

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
