1
Engine displacement
150
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Plate set and handbooks
by
Acc. - Windshields

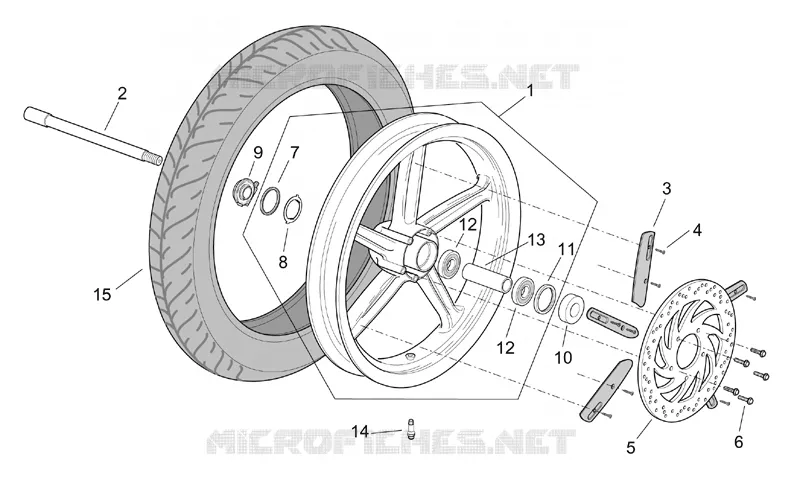

Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
Front wheel
AP8108892
Not Available
1
Front wheel, grey
AP8108971
Not Available
1
Front wheel
AP8108920
Not Available
2
Front wheel spindle
AP8125767
Not Available
3
Front spoke cover
AP8139686
Not Available
4
screw
AP8125810
Not Available
5
Front brake disc d.260
AP8113697
£101,09 Unit Price incl. VAT
6
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
7
Gasket ring D40x50x4
AP8125743
£33,32 Unit Price incl. VAT
8
Drive key
AP8120865
£10,31 Unit Price incl. VAT
9
Odometer gear
AP8104426
£25,20 Unit Price incl. VAT
9
Odometer gear
AP8102845
£22,91 Unit Price incl. VAT
10
Spacer
AP8225280
£17,53 Unit Price incl. VAT
11
Oil seal
AP8120621
Not Available
12
Bearing 15x42x13
AP8125812
Not Available
13
Spacer
AP8125811
Not Available
14
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
15
Tyre
0000000
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
