Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
LH Controls
6
Parts Diagram
Parts Catalog
Carburettor IV
by
RH controls
LH Controls
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
2
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
3
Rear brake hose
AP8113700
Not Available
4
Handgrip pair, black
AP8118539
Not Available
4
Handgrip pair, black
AP8118643
Not Available
4
Handgrip pair, black
AP8118609
Not Available
5
Pump revision kit
AP8113862
Not Available
6
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
7
Brake lever
AP8118542
£53,84 Unit Price incl. VAT
7
Brake lever
AP8118641
Not Available
8
Pump cover screw
AP8113859
Not Available
9
Pump cover
AP8113860
£29,60 Unit Price incl. VAT
10
Lever screw
AP8125757
£12,31 Unit Price incl. VAT
11
Nut
AP8213298
£17,00 Unit Price incl. VAT
12
Brake lever U-bolt
AP8113637
£33,77 Unit Price incl. VAT
13
Cap screw
AP8213299
£3,38 Unit Price incl. VAT
14
Stop switch
AP8124818
Not Available
15
Rear master cylinder
AP8113784
Not Available
15
Rear master cylinder
AP8133558
£274,58 Unit Price incl. VAT
16
Piston assy
AP8113861
£51,17 Unit Price incl. VAT
17
LH lights selector
AP8127225
£179,82 Unit Price incl. VAT
17
LH lights selector
AP8127092
£163,74 Unit Price incl. VAT
17
LH lights selector
AP8124498
Not Available
18
Upper LH light control cover
AP8124803
Not Available
19
Lower LH light control cover
AP8118607
Not Available
19
Lower LH light control cover
AP8124804
Not Available
20
Turn indic.lightbutton cap
AP8127180
£10,67 Unit Price incl. VAT

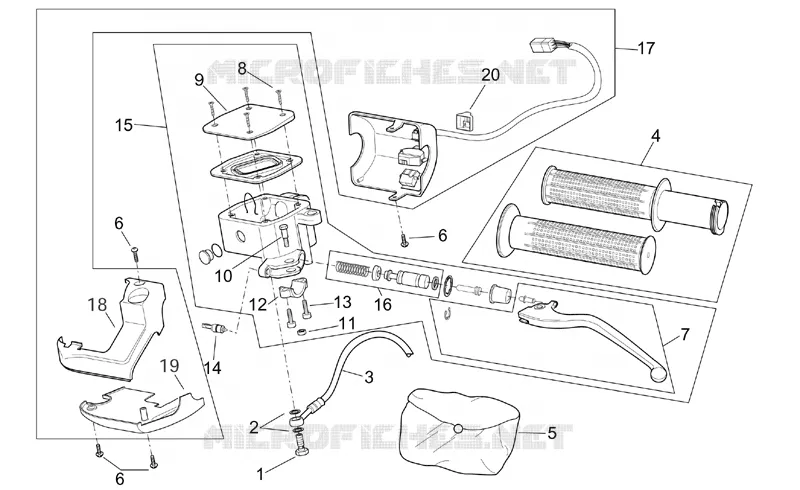

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
