Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Side cases
6

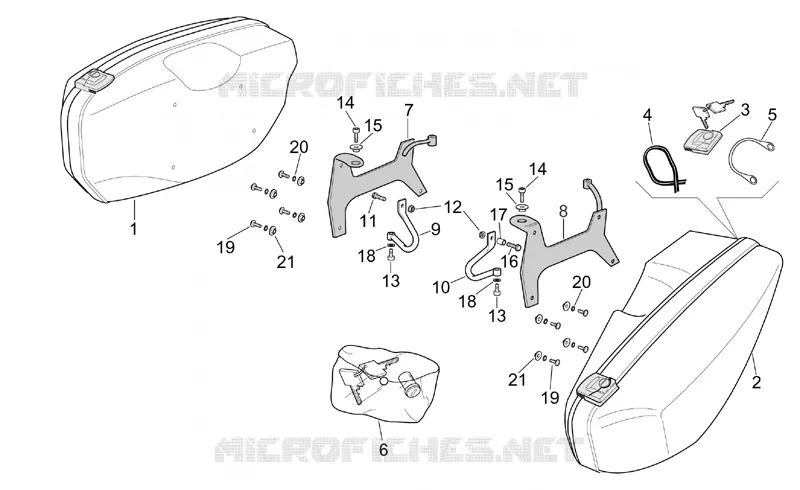

Parts Diagram
Parts Catalog
Acc. - Top/cases, side cases
by
Variator - Primary drive
Side cases
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
18
18
19
19
20
20
21
21
1
RH suitcase, blue
AP8168130
Not Available
1
RH suitcase, green
AP8168128
Not Available
1
RH suitcase, grey
AP8168129
Not Available
2
LH suitcase, blue
AP8168081
Not Available
2
LH suitcase, grey
AP8168079
Not Available
2
LH suitcase, green
AP8168121
Not Available
3
Lock no rotor+Key
AP8792117
Not Available
4
Gasket
AP8702096
Not Available
5
Rear fairing cable
AP8201855
£5,74 Unit Price incl. VAT
6
Rotor kit with key
AP8790114
Not Available
7
RH support
AP8702108
Not Available
8
LH support
AP8702105
Not Available
9
RH connecting
AP8702109
Not Available
10
LH connecting
AP8702107
Not Available
11
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
12
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
13
Hex socket screw M8x20
AP8150169
£1,66 Unit Price incl. VAT
14
Hex socket screw M6x60
AP8150157
£1,27 Unit Price incl. VAT
15
Bush
AP8702106
£3,91 Unit Price incl. VAT
16
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
17
Spacer
AP8700172
Not Available
18
Washer 8,4x13*
AP8152154
£1,88 Unit Price incl. VAT
19
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
20
Spring washer 6,4x11x0,5*
AP8150429
Not Available
21
T bush *
AP8120508
£3,83 Unit Price incl. VAT
