Engine displacement
125
2
Model
SCARABEO
3
Year
2002
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
RH controls
6

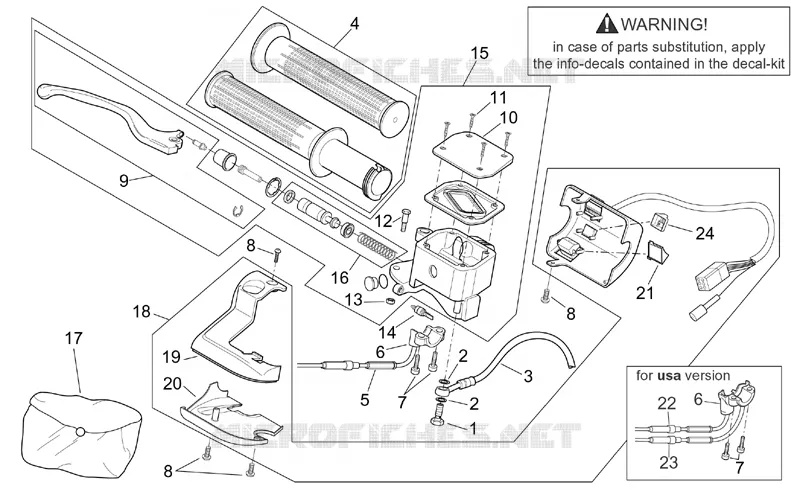

Parts Diagram
Parts Catalog
LH Controls
by
Acc. - Various II
RH controls
1
2
2
3
4
5
6
6
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
2
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
3
Front brake hose
AP8113696
Not Available
4
Handgrip pair, black
AP8118539
Not Available
4
Handgrip pair, black
AP8118643
Not Available
4
Handgrip pair, black
AP8118609
Not Available
5
Throttle cable
AP8114453
Not Available
5
Throttle cable
AP8114382
Not Available
6
Throttle place
AP8118499
Not Available
6
Throttle place
AP8118582
£8,51 Unit Price incl. VAT
7
Hex socket screw M6x25
AP8150165
£0,89 Unit Price incl. VAT
8
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
9
Brake lever
AP8118542
£53,84 Unit Price incl. VAT
9
Brake lever
AP8118641
Not Available
10
Pump cover
AP8113863
Not Available
11
Pump cover screw
AP8113859
Not Available
12
Lever screw
AP8125757
£12,31 Unit Price incl. VAT
13
Nut
AP8213298
£17,00 Unit Price incl. VAT
14
Stop switch
AP8124818
Not Available
15
Front master cilinder
AP8113783
Not Available
15
Front master cilinder
AP8133557
Not Available
15
Front master cilinder
AP8113928
Not Available
16
Piston assy
AP8113861
£51,17 Unit Price incl. VAT
17
Pump revision kit
AP8113864
£37,90 Unit Price incl. VAT
18
RH lights selector
AP8124689
Not Available
18
RH lights selector
AP8124991
Not Available
18
RH lights selector
AP8127226
£115,37 Unit Price incl. VAT
19
Upper RH light control cover
AP8124805
Not Available
20
Lower RH light control cover
AP8124806
Not Available
20
Lower RH light control cover
AP8118608
Not Available
21
Start pushbutton
AP8127238
£12,71 Unit Price incl. VAT
22
Opening throttle cable
AP8114423
Not Available
23
Closure throttle cable
AP8114424
Not Available
24
Lightbutton cap
AP8127179
£12,14 Unit Price incl. VAT
