Rear master cylinder for Norge IE 8V from 2011

Free shipping for all orders to United Kingdom over £150! See conditions.

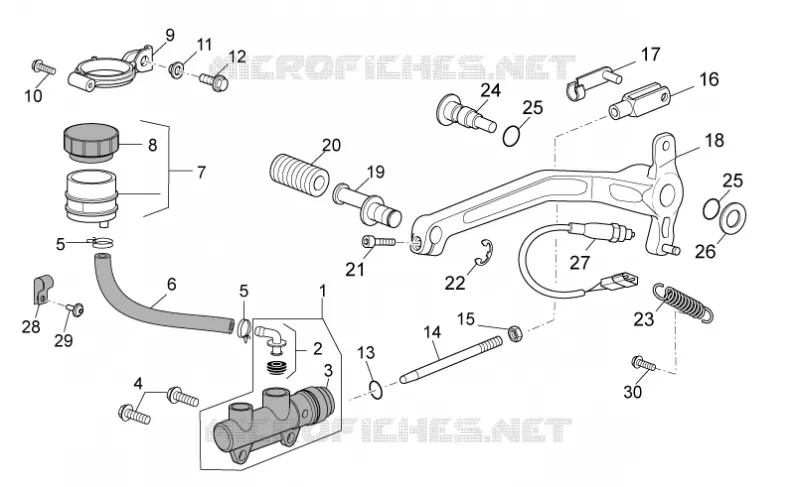

Rear master cylinder

1

Rear master cylinder

GU05666930

£117,11 Unit Price incl. VAT

2

Rear brake pump union

AP8113594

£26,09 Unit Price incl. VAT

3

Rubber bellows

AP8113288

£48,95 Unit Price incl. VAT

4

Screw w/ flange M6x20

AP8152279

£1,87 Unit Price incl. VAT

5

Hose clamp D10,1

AP8101595

£3,97 Unit Price incl. VAT

6

Oil pipe

GU00823950050

£26,57 Unit Price incl. VAT

7

Brake oil tank complete

GU05663530

£31,76 Unit Price incl. VAT

8

Tank cap

GU17661052

£30,54 Unit Price incl. VAT

9

Tank support

GU05666030

£10,57 Unit Price incl. VAT

10

Phillips screw, SWP M5x20

AP8152329

£1,80 Unit Price incl. VAT

11

T bush *

AP8221145

£9,78 Unit Price incl. VAT

12

Screw w/ flange

598839

£1,27 Unit Price incl. VAT

13

O-ring OR112

AP8120178

£4,69 Unit Price incl. VAT

14

Master cylinder rod

977041

£25,76 Unit Price incl. VAT

15

Nut

GU92606206

£1,02 Unit Price incl. VAT

16

Fork

AP8101968

£16,72 Unit Price incl. VAT

17

Gear selector fork clips

AP8201301

£6,13 Unit Price incl. VAT

18

Rear brake lever

GU05677030

£104,57 Unit Price incl. VAT

19

Brake lever pin

AP8121221

£22,68 Unit Price incl. VAT

20

Lever rubber

AP8120912

£3,68 Unit Price incl. VAT

21

Hex socket screw M6x16

GU98682316

£1,26 Unit Price incl. VAT

22

Circlip d9

AP8150462

£1,39 Unit Price incl. VAT

23

Rear brake lever spring

AP8121927

£15,10 Unit Price incl. VAT

24

Lever pin

884033

Not Available

25

O-ring 11,11x1,78

AP8144007

£1,39 Unit Price incl. VAT

26

Washer 10,5x22x2,5

GU95008310

£2,48 Unit Price incl. VAT

27

Microswitch

AP8112996

£78,91 Unit Price incl. VAT

28

Wiring clip

890721

£6,82 Unit Price incl. VAT

29

Hex socket screw

GU98350210

£1,26 Unit Price incl. VAT

30

Screw w/ flange M5x15

AP8152273

£1,88 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
