Engine displacement
750
2
Model
NEVADA
3
Year
1997
4
Trim
Nevada
5
Parts Catalog
Front brake system
6
Parts Diagram
Parts Catalog
Electrical system II
by
Pierburg valve system
Front brake system
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
1
Front master cilinder
GU30660180
Not Available
2
Front master cilinder
GU28660278
Not Available
3
Brake lever
GU30605680
£69,13 Unit Price incl. VAT
4
Bracket
GU27664075
Not Available
5
Pin
GU27604815
£19,98 Unit Price incl. VAT
6
Cap
GU27663615
Not Available
7
Microswitch
GU30749860
£30,79 Unit Price incl. VAT
8
screw
GU98200214
Not Available
9
Ball
GU92295708
£0,70 Unit Price incl. VAT
10
Pump cover
GU27661115
Not Available
11
Pump revision kit
GU28659378
£77,59 Unit Price incl. VAT
12
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
13
Front brake hose
GU31657165
Not Available
14
Distributor
GU31656860
£49,09 Unit Price incl. VAT
15
RH front brake caliper Grimeca
GU31652265
Not Available
16
LH front brake caliper Grimeca
GU31652365
Not Available
17
Brake caliper cover BREMBO
GU39654700
Not Available
17
Brake caliper cover GRIMECA
GU31654765
Not Available
18
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
18
Pads pair GRIMECA
GU31654665
Not Available
19
Gasket
GU25656100
£1,57 Unit Price incl. VAT
20
screw
GU98622422
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
22
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
22
Washer 8,5X18X0,8
GU95100251
Not Available
23
Bleeder+cap GRIMECA
GU31659265
£12,54 Unit Price incl. VAT
23
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
24
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
24
Pins+spring GRIMECA
GU31659165
Not Available
25
Brake caliper rev. kit GRIMECA
GU66659031
Not Available
25
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
26
Nut
GU92601002
£1,02 Unit Price incl. VAT
27
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
28
Cable-guide
GU23655770
Not Available
29
Ring
GU91551120
£1,38 Unit Price incl. VAT
30
Cap
GU39663801
£10,33 Unit Price incl. VAT
31
screw
GU98230630
Not Available
32
Washer 6,15x11x0,8
GU95004206
Not Available
33
Washer
GU95000206
£1,02 Unit Price incl. VAT
34
Spacer
GU91180605
£10,21 Unit Price incl. VAT
35
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
36
Front brake hose
GU31658865
£100,42 Unit Price incl. VAT

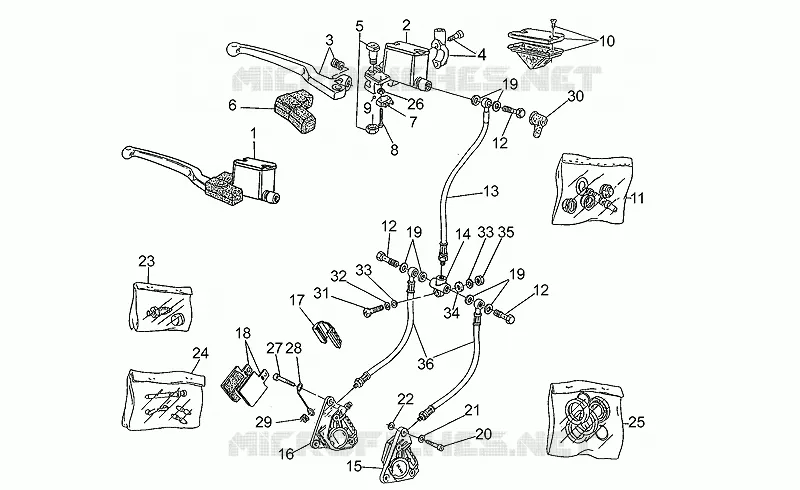

Find the detailed Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
