1
Engine displacement
750
2
Model
NEVADA
3
Year
1997
4
Trim
Nevada
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Number plate holder
by
Rear wheel
Front wheel
1
2
3
4
4
5
6
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Front wheel 2,15x18"
GU31610365
Not Available
2
Spoke
GU39611601
£12,59 Unit Price incl. VAT
3
Counterweight 20 g
GU12616102
£4,02 Unit Price incl. VAT
3
Counterweight 15 gr.
GU12616101
£4,02 Unit Price incl. VAT
3
Counterweight 30 g
GU12616103
£8,27 Unit Price incl. VAT
4
Flange
GU31620365
£126,34 Unit Price incl. VAT
5
Spacer
GU31615260
£25,62 Unit Price incl. VAT
6
Bearing
GU92204221
£65,62 Unit Price incl. VAT
7
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
8
Nut M16X1,5
GU92602516
Not Available
9
Front brake disc
GU31613365
Not Available
10
screw
GU30611460
£4,01 Unit Price incl. VAT
11
screw
GU98052470
£1,27 Unit Price incl. VAT
12
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
13
Nut
GU92630508
£1,67 Unit Price incl. VAT
14
Front wheel spindle
GU31614160
£16,15 Unit Price incl. VAT
15
Spacer
GU31616360
£32,66 Unit Price incl. VAT
15
Spacer
GU31616361
£15,18 Unit Price incl. VAT
16
Front wheel 2,15x18"
GU23610870
Not Available
17
Brake disc
GU30635860
Not Available
18
Flange
GU30613760
Not Available
19
Bushing
GU28613560
£21,96 Unit Price incl. VAT
20
Belleville spring
GU28618860
£3,80 Unit Price incl. VAT
21
Circlip
GU90271022
£1,42 Unit Price incl. VAT
22
Speedometer gear 16 mm
GU31762560
Not Available
22
Odometer gear
GU31762561
Not Available
22
Speedometer gear
GU31762562
£209,15 Unit Price incl. VAT

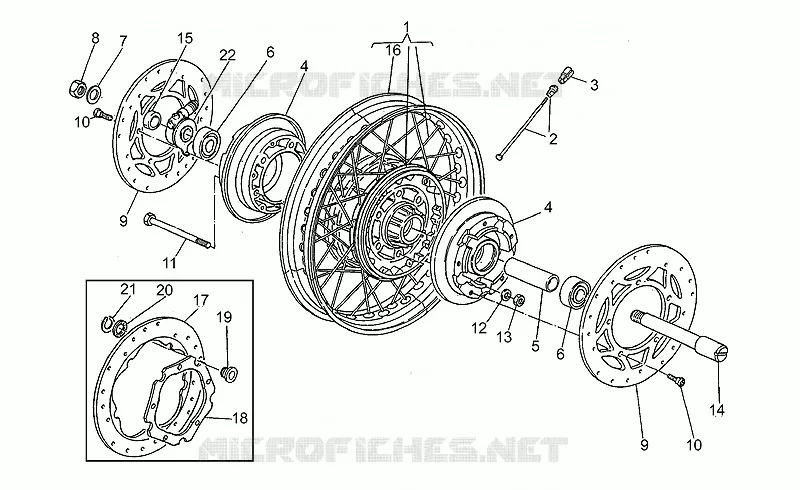

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Nevada

Saprisa battery - alternator

Saprisa battery - alternator

for Nevada from 1997

Rear top box

Rear top box

for Nevada from 1997

Suitcase kit

Suitcase kit

for Nevada from 1997

Leather top box kit

Leather top box kit

for Nevada from 1997

Body

Body

for Nevada from 1997

Stands

Stands

for Nevada from 1997

Rear bevel gear

Rear bevel gear

for Nevada from 1997

Dashboard

Dashboard

for Nevada from 1997

Headlight-Horn

Headlight-Horn

for Nevada from 1997

Taillight

Taillight

for Nevada from 1997

Air filter

Air filter

for Nevada from 1997

F.fork-R.shock absorber

F.fork-R.shock absorber

for Nevada from 1997

Swing arm

Swing arm

for Nevada from 1997

Electrical system I

Electrical system I

for Nevada from 1997

Electrical system II

Electrical system II

for Nevada from 1997

Front brake system

Front brake system

for Nevada from 1997

Pierburg valve system

Pierburg valve system

for Nevada from 1997

Handlebar

Handlebar

for Nevada from 1997

Front/rear mudguards

Front/rear mudguards

for Nevada from 1997

Foot rests - Lateral stand

Foot rests - Lateral stand

for Nevada from 1997

Rear brake caliper

Rear brake caliper

for Nevada from 1997

Rear master cylinder

Rear master cylinder

for Nevada from 1997

Luggage rack

Luggage rack

for Nevada from 1997

Number plate holder

Number plate holder

for Nevada from 1997

Front wheel

Front wheel

for Nevada from 1997

Rear wheel

Rear wheel

for Nevada from 1997

Front/rear shock absorber

Front/rear shock absorber

for Nevada from 1997

Frame

Frame

for Nevada from 1997

Ignition unit I

Ignition unit I

for Nevada from 1997

Ignition unit II

Ignition unit II

for Nevada from 1997

Fuel supply

Fuel supply

for Nevada from 1997

Exhaust unit

Exhaust unit

for Nevada from 1997

Gear lever

Gear lever

for Nevada from 1997

Drive shaft

Drive shaft

for Nevada from 1997

Gear box

Gear box

for Nevada from 1997

Carburettors

Carburettors

for Nevada from 1997

Crankcase

Crankcase

for Nevada from 1997

Cylinder - Head - Piston

Cylinder - Head - Piston

for Nevada from 1997

Timing system

Timing system

for Nevada from 1997

Clutch

Clutch

for Nevada from 1997

Starter motor

Starter motor

for Nevada from 1997

Oil pump assy.

Oil pump assy.

for Nevada from 1997

Transmission cage

Transmission cage

for Nevada from 1997

Accessories

Accessories

for Nevada from 1997

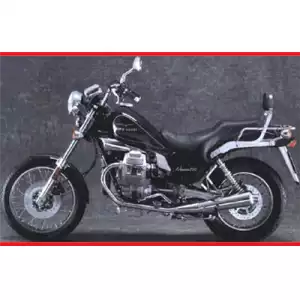

MOTO GUZZI LAVERDA SCARABEO Nevada 1997
