Engine displacement
750
2
Model
NEVADA
3
Year
1992
4
Trim
Nevada
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Cases-windscreen kit
by
Stands
Body
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
27
28
28
29
30
31
33
34
34
35
36
36
37
37
1
Fuel tank
GU311002601
£1 313,90 Unit Price incl. VAT
1
Fuel tank
GU31100260
Not Available
1
Fuel tank
GU31100261
Not Available
2
Cover
GU29103951
Not Available
3
Gasket
GU28576892
Not Available
4
Fuel tank decal
GU31925560
Not Available
5
Fuel tank decal
GU31917360
Not Available
6
LH fuel cock
GU31105460
Not Available
7
Knob
GU29105750001
Not Available
8
screw
GU98200306
£0,80 Unit Price incl. VAT
9
RH fuel cock
GU31105360
Not Available
10
Fuel pipe
GU29106500
Not Available
11
Hose clamp
GU28108410
Not Available
12
Tie rod
GU19102750
Not Available
13
Saddle
GU31460560
Not Available
14
Rondelle 6,5x20x2
GU95100141
£1,02 Unit Price incl. VAT
15
Nut
GU92670206
£1,03 Unit Price incl. VAT
16
RH side panel
GU31476260
£235,93 Unit Price incl. VAT
16
RH side panel
GU31476261
Not Available
16
COUVERCLE BATTERIE
GU234762101
£15,29 Unit Price incl. VAT
17
LH side panel
GU31476361
Not Available
17
LH side panel
GU31476364
Not Available
17
LH side panel
GU234763101
Not Available
17
LH side panel
GU31476363
Not Available
17
LH side panel
GU31476360
Not Available
17
LH side cover blank
GU314763621
Not Available
18
RH side panel decal
GU31940480
Not Available
18
Decal "NEVADA 750"
GU31922060
£49,54 Unit Price incl. VAT
18
LH side panel decal
GU31940580
Not Available
19
RH side chromium plated
GU31570260
Not Available
20
Net panel (r)
GU31576760
Not Available
21
Vis taraud
GU99210210
£3,26 Unit Price incl. VAT
22
LH side panel cromo
GU31570360
Not Available
23
Net panel (l)
GU31576660
Not Available
24
RH front side panel
GU31575360
Not Available
25
LH front side panel
GU31575460
Not Available
26
Vis
GU98230620
£2,04 Unit Price incl. VAT
27
Washer
GU95001206
Not Available
28
Ecrou en cage
GU92660601
£1,58 Unit Price incl. VAT
29
screw
GU98230621
Not Available
30
Washer 6,15x11x0,8
GU95004206
Not Available
31
Entretoise
GU91180605
£10,21 Unit Price incl. VAT
33
Rubber spacer
GU93110082
Not Available
34
Fuel pipe
GU00823948130
Not Available
35
Collier
GU28157950
£2,64 Unit Price incl. VAT
36
Pipette racc.tuyau essence
GU31934680
£16,19 Unit Price incl. VAT
37
Hose clamp
GU28108410
Not Available

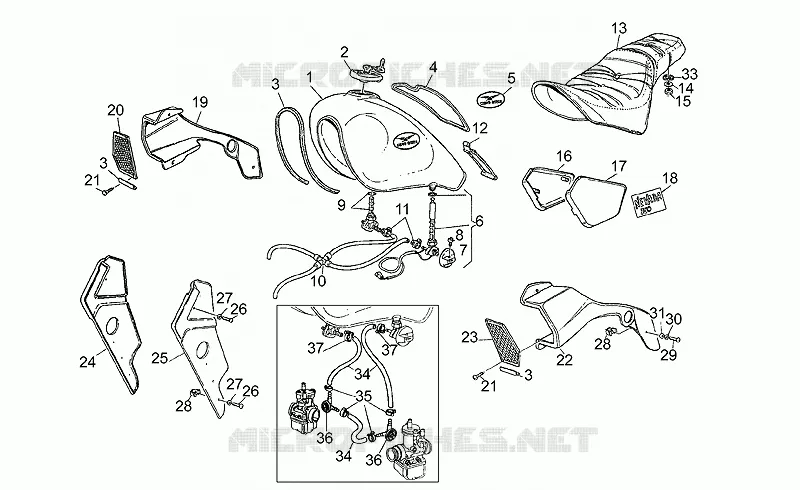

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
