Cylinder head for MOTO GUZZI LAVERDA SCARABEO Nevada from 1992

Free shipping for all orders to United Kingdom over £150! See conditions.

Cylinder head

1

RH head

GU31022115

Not Available

2

LH head

GU31022215

Not Available

3

Valve guide

GU61036801

£44,20 Unit Price incl. VAT

4

Anneau élastique

GU90353009

£1,02 Unit Price incl. VAT

5

Vis sans tête

GU96506042

£10,42 Unit Price incl. VAT

6

Plaquette antivibratile

GU19025300

£3,41 Unit Price incl. VAT

7

Ecrou

GU19021920

£10,73 Unit Price incl. VAT

8

Joint spi

GU19037820

£24,59 Unit Price incl. VAT

9

Valves cover, stain.

GU31023500

Not Available

10

Gasket

GU19023700

£1,57 Unit Price incl. VAT

11

Nut M10X1,5

GU92603010

£1,54 Unit Price incl. VAT

12

Ecrou colonne

GU13021900

£15,36 Unit Price incl. VAT

13

Rondelle 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

14

Vis sans tête M10x214

GU96510214

£30,86 Unit Price incl. VAT

15

Tie rod 162 mm

GU96510158

Not Available

16

screw

GU98620325

Not Available

17

Cylinder with piston

GU31060116

Not Available

18

Bague

GU19021360

£19,37 Unit Price incl. VAT

19

Joint

GU27022060

£40,02 Unit Price incl. VAT

20

Stud bolt M8x143

GU96508145

Not Available

21

Rondelle élastique

GU61270300

£1,70 Unit Price incl. VAT

22

Bouchon

GU93180245

£2,63 Unit Price incl. VAT

23

Joint torique

GU61027200

£1,58 Unit Price incl. VAT

24

Gasket

GU27020820

Not Available

25

Joint torique

GU90706076

£0,89 Unit Price incl. VAT

26

Cale

GU19032980

£2,75 Unit Price incl. VAT

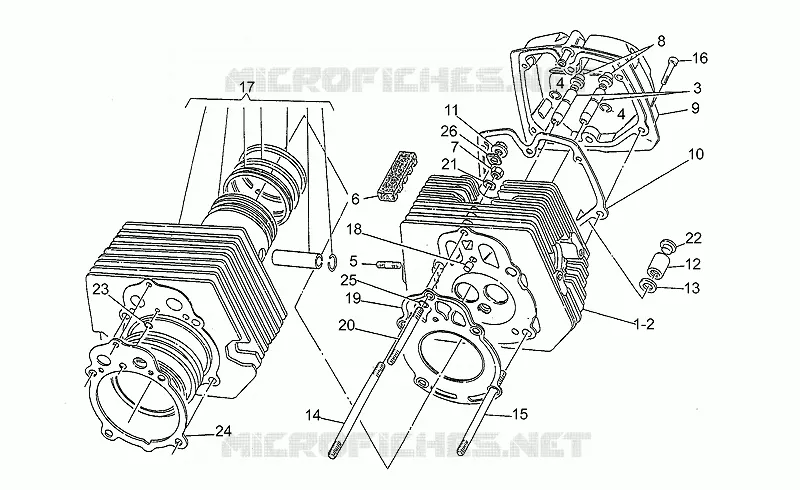

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
