1
Engine displacement
350
2
Model
NEVADA
3
Year
1992
4
Trim
Nevada
5
Parts Catalog
Front master cilinder
6
Parts Diagram
Parts Catalog
Brake caliper
by
Rear master cylinder
Front master cilinder
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
13
14
15
16
17
18
19
19
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Front master cilinder
GU28660178
Not Available
2
Front master cilinder
GU28660278
Not Available
3
Front brake lever
GU28605678
Not Available
4
Bracket
GU27664075
Not Available
5
Pin
GU27604815
£19,98 Unit Price incl. VAT
6
Cap
GU27663615
Not Available
7
Stop switch
GU27749815
Not Available
8
screw
GU98200214
Not Available
9
Ball
GU92295708
£0,70 Unit Price incl. VAT
10
Pump cover
GU27661115
Not Available
11
Pump revision kit
GU28659378
£77,59 Unit Price incl. VAT
12
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
13
Flexible pipe
GU31657160
£77,54 Unit Price incl. VAT
14
Distributor
GU31656860
£49,09 Unit Price incl. VAT
15
RH front brake caliper Grimeca
GU31652265
Not Available
16
LH front brake caliper Grimeca
GU31652365
Not Available
17
Brake caliper cover BREMBO
GU39654700
Not Available
18
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
19
Gasket
GU25656100
£1,57 Unit Price incl. VAT
20
screw
GU98622422
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
22
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
22
Washer 8,5X18X0,8
GU95100251
Not Available
23
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
24
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
25
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
26
Nut
GU92608202
Not Available
27
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
28
Cable-guide
GU23655770
Not Available
29
Ring
GU91551120
£1,38 Unit Price incl. VAT
30
Cap
GU39663801
£10,33 Unit Price incl. VAT
31
screw
GU98054330
£0,29 Unit Price incl. VAT
32
Washer 6,15x11x0,8
GU95004206
Not Available
33
Notched washer
GU95021106
Not Available

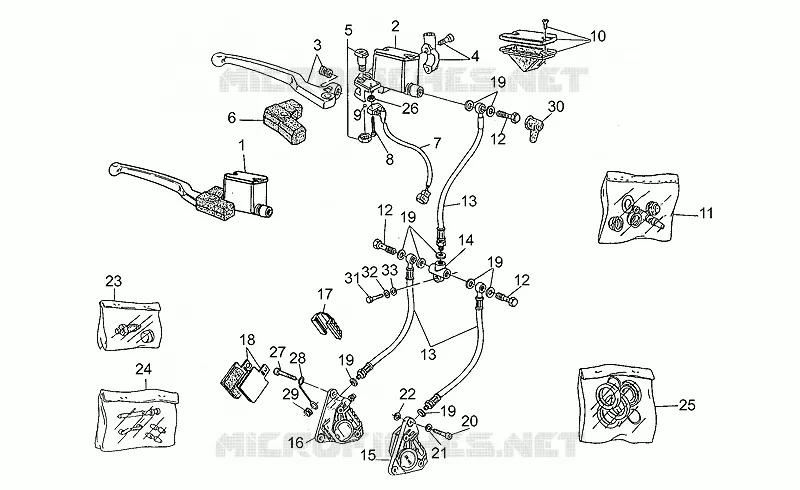

Find the detailed Front master cilinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Nevada

Battery

Battery

for Nevada from 1992

Cases-windscreen kit

Cases-windscreen kit

for Nevada from 1992

Body

Body

for Nevada from 1992

Stands

Stands

for Nevada from 1992

Bevel gear

Bevel gear

for Nevada from 1992

Dashboard

Dashboard

for Nevada from 1992

Headlight-Horn

Headlight-Horn

for Nevada from 1992

Taillight

Taillight

for Nevada from 1992

Air filter

Air filter

for Nevada from 1992

Front fork

Front fork

for Nevada from 1992

Swing arm

Swing arm

for Nevada from 1992

Electrical system

Electrical system

for Nevada from 1992

Handlebar - Controls

Handlebar - Controls

for Nevada from 1992

Front/rear mudguards

Front/rear mudguards

for Nevada from 1992

Foot rests

Foot rests

for Nevada from 1992

Brake caliper

Brake caliper

for Nevada from 1992

Front master cilinder

Front master cilinder

for Nevada from 1992

Rear master cylinder

Rear master cylinder

for Nevada from 1992

Front wheel

Front wheel

for Nevada from 1992

Rear wheel

Rear wheel

for Nevada from 1992

Front/rear shock absorber

Front/rear shock absorber

for Nevada from 1992

Frame

Frame

for Nevada from 1992

Fuel supply

Fuel supply

for Nevada from 1992

Exhaust unit

Exhaust unit

for Nevada from 1992

Gear lever

Gear lever

for Nevada from 1992

Drive shaft

Drive shaft

for Nevada from 1992

Gear box

Gear box

for Nevada from 1992

Carburettors

Carburettors

for Nevada from 1992

Crankcase

Crankcase

for Nevada from 1992

Timing system

Timing system

for Nevada from 1992

Clutch

Clutch

for Nevada from 1992

Starter motor

Starter motor

for Nevada from 1992

Oil pump

Oil pump

for Nevada from 1992

Transmission cage

Transmission cage

for Nevada from 1992

Cylinder head

Cylinder head

for Nevada from 1992

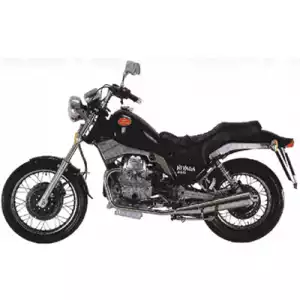

MOTO GUZZI LAVERDA SCARABEO Nevada 1992
