Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Cylinder - Piston
6
Parts Diagram
Parts Catalog
Rear brake caliper
by
Saddle compartment
Cylinder - Piston
1
2
2
3
3
4
4
5
5
6
6
7
7
7
8
9
10
10
11
12
12
13
14
15
16
17
18
19
1
Cylinder with piston assy., RH
B064047
£1 001,57 Unit Price incl. VAT
2
Complete piston E
8868810002
£465,46 Unit Price incl. VAT
2
Piston assy "D"
8868810001
£465,46 Unit Price incl. VAT
2
Complete piston F
8868810003
£465,46 Unit Price incl. VAT
3
Piston ring
886883
£44,15 Unit Price incl. VAT
4
Piston ring
886884
£45,78 Unit Price incl. VAT
5
Piston ring
886885
£45,78 Unit Price incl. VAT
6
Gudgeon bucket
886886
£47,35 Unit Price incl. VAT
7
Stop ring
874567
£14,84 Unit Price incl. VAT
8
Cylinder with piston assy., LH
B064046
£1 001,57 Unit Price incl. VAT
9
O-ring 26.64x2.62
B015126
£5,08 Unit Price incl. VAT
10
Stud bolt M10x251
976899
£28,66 Unit Price incl. VAT
11
Cylinder base gasket
976312
£36,76 Unit Price incl. VAT
12
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
13
RH chain tensioner
873689
£109,21 Unit Price incl. VAT
14
LH chain tensioner
873690
£109,21 Unit Price incl. VAT
15
Chain tension.plug
976342
£12,07 Unit Price incl. VAT
16
Chain tension.plug
B015125
£14,92 Unit Price incl. VAT
17
Hex socket screw M6x20
GU98350310
£1,26 Unit Price incl. VAT
18
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
19
Washer
849866
£7,78 Unit Price incl. VAT

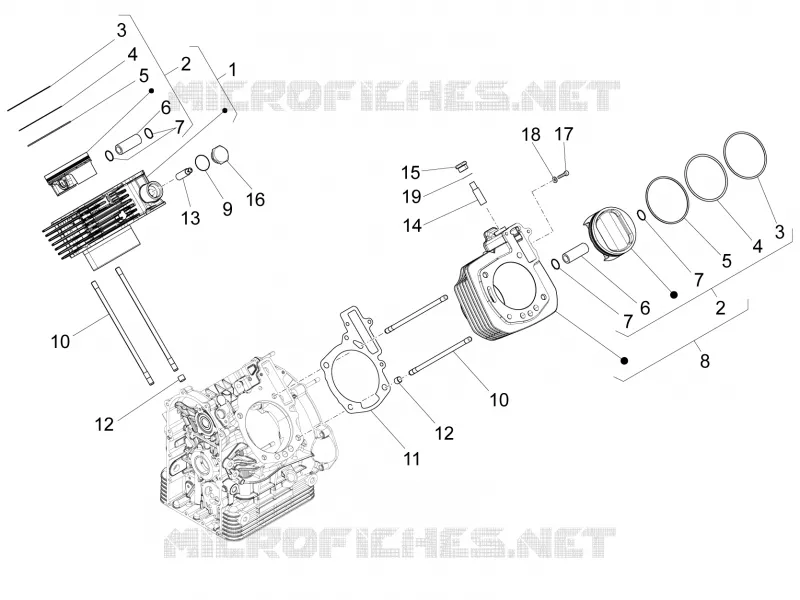

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
