Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Exhaust pipe
6
Parts Diagram
Parts Catalog
Blow-by system
by
Gear box - Gear assembly
Exhaust pipe
1
2
3
4
5
5
5
6
6
6
6
7
8
9
9
9
9
9
9
9
10
10
11
11
12
12
13
14
15
16
17
17
18
18
19
20
20
21
21
22
22
22
23
23
23
23
24
24
24
24
25
25
26
26
27
28
1
RH silencer
2B0025445
£839,50 Unit Price incl. VAT
2
LH silencer
2B0025435
£784,58 Unit Price incl. VAT
3
Right silencer support bracket
2B002548
£64,38 Unit Price incl. VAT
4
Left silencer support bracket
2B002547
£64,38 Unit Price incl. VAT
5
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
6
Washer
GU95008308
£1,26 Unit Price incl. VAT
7
Silencer sx protection
2B0026065
£144,17 Unit Price incl. VAT
8
Silencer dx protection
2B0026075
£154,99 Unit Price incl. VAT
9
TBEI pre-impregnated screw M6x10
2B002143
£4,74 Unit Price incl. VAT
10
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
D.48 clamp
B063293
£38,41 Unit Price incl. VAT
13
Left exhaust manifold
2B003011
£1 215,16 Unit Price incl. VAT
14
Right exhaust manifold
2B003012
£1 215,16 Unit Price incl. VAT
15
LH heat protection
2B0030075
£65,68 Unit Price incl. VAT
16
RH heat protection
2B0030085
£65,68 Unit Price incl. VAT
17
Spacer
876879
£10,63 Unit Price incl. VAT
18
Lamda sensor l. 325 mm
584344
£178,32 Unit Price incl. VAT
19
D.37 clamp
B063292
£37,60 Unit Price incl. VAT
20
Exhaust manifold gasket
2B002217
£12,48 Unit Price incl. VAT
21
Coarse hexagonal countersunk screw
B063114
£5,08 Unit Price incl. VAT
22
Bush
887816
£13,16 Unit Price incl. VAT
23
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
24
Bush
AP8121510
£10,88 Unit Price incl. VAT
25
Flanged nut M8
GU92660021
£1,60 Unit Price incl. VAT
26
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
27
Bottom
2B004087
£66,26 Unit Price incl. VAT
28
Hex socket screw M5x10
651014
£1,27 Unit Price incl. VAT

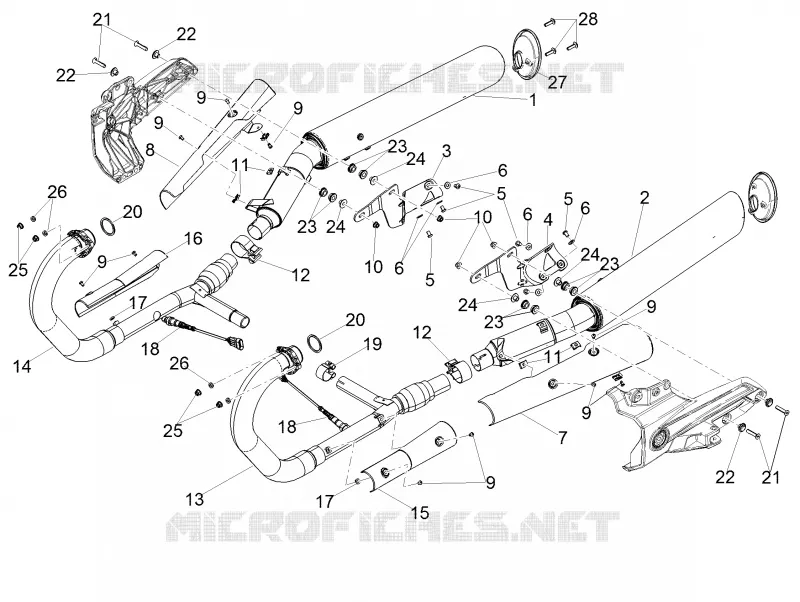

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
