Engine displacement
1380
2
Model
MGX-21
3
Year
2016
4
Trim
MGX 21 FLYING FORTRESS
5
Parts Catalog
Lubrication
6
Parts Diagram
Parts Catalog
Front lights
by
Front fairing
Lubrication
1
2
2
3
3
4
4
5
5
6
6
6
7
8
9
10
11
12
13
14
15
15
16
17
17
18
18
1
Pipe
887951
£65,03 Unit Price incl. VAT
2
Gasket
GU01154230
£2,34 Unit Price incl. VAT
3
Reduction
GU01161331
£18,25 Unit Price incl. VAT
4
O-ring
899064
£5,14 Unit Price incl. VAT
5
Bored screw
874223
£15,30 Unit Price incl. VAT
6
Copper gasket
976597
£4,67 Unit Price incl. VAT
7
Nipple
874669
£65,35 Unit Price incl. VAT
8
Gasket
976592
£7,06 Unit Price incl. VAT
9
O-ring 12,42x1
434947
£0,24 Unit Price incl. VAT
10
Oil pipe
874646
£58,28 Unit Price incl. VAT
11
Pipe
887950
£338,09 Unit Price incl. VAT
12
Oil pressure sensor
641541
Not Available
13
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
14
RH Nozzle
976681
£68,42 Unit Price incl. VAT
15
O-ring
874238
£15,00 Unit Price incl. VAT
16
LH Nozzle
976680
£68,42 Unit Price incl. VAT
17
screw
621914
£2,48 Unit Price incl. VAT
18
Flat washer 4,2x12x1
013763
Not Available

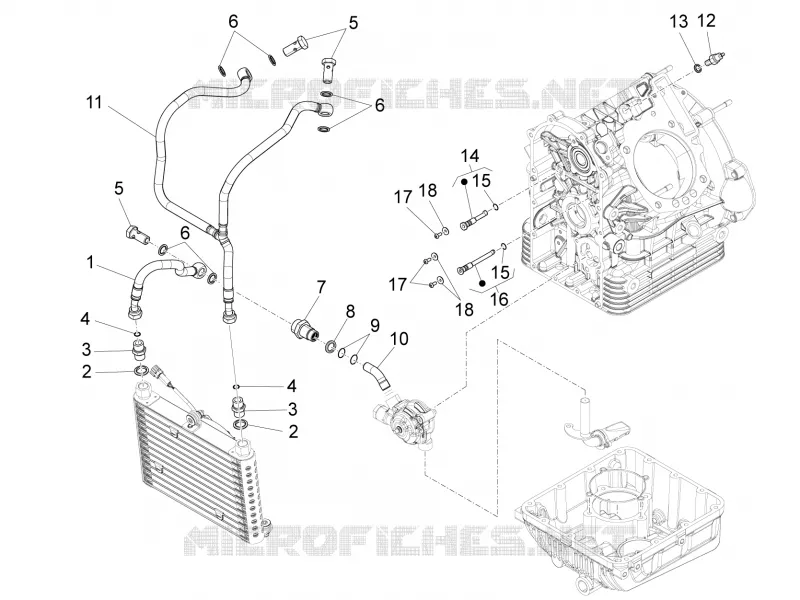

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
