1
Engine displacement
50
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo 2T (engine Minarelli)
5
Parts Catalog
Exhaust pipe
6
Parts Diagram
Parts Catalog
Seat - Carrier
by

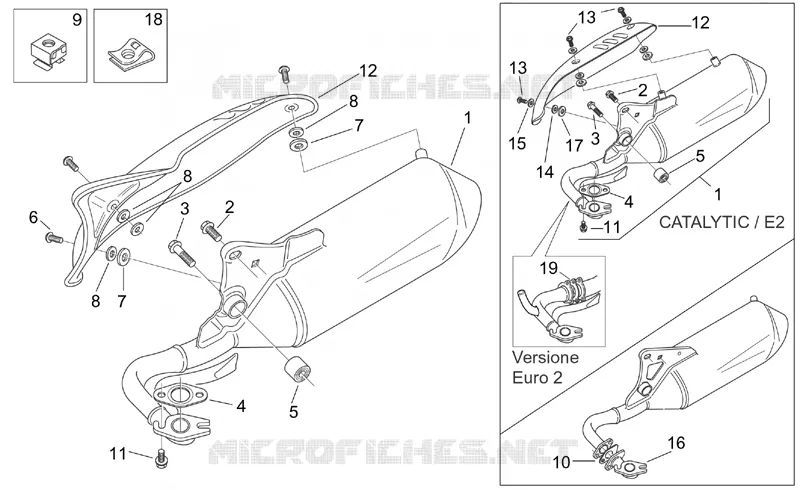

Exhaust pipe
1
1
2
2
3
3
4
4
5
5
6
7
7
8
8
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
1
Cat.exhaust pipe -CH-
AP8219416
Not Available
1
Cat.exhaust pipe E2
AP8219582
Not Available
1
Silencer -I-
AP8219375
Not Available
1
Silencer -E-
AP8219423
Not Available
1
Cat.exhaust pipe -D-
AP8219414
Not Available
1
Silencer -F-
AP8219415
Not Available
1
Silencer -J-
AP8219422
Not Available
1
Cat.exhaust pipe -i-
AP8219575
Not Available
1
Cat.exhaust pipe E2
AP8219583
Not Available
1
Silencer
AP8219458
Not Available
2
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
3
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
4
Exhaust pipe gasket
AP8219596
£9,10 Unit Price incl. VAT
4
Exhaust pipe gasket
AP8219212
£9,56 Unit Price incl. VAT
5
Silent block, exhaust pipe
AP8220357
£10,27 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
7
Insulating washer
AP8120870
Not Available
8
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
9
Captive nut M6
AP8221213
£1,88 Unit Price incl. VAT
10
Exhaust pipe flange gasket
AP8219428
Not Available
11
Screw w/ flange
AP8152260
Not Available
12
Exhaust pipe protection
AP8219487
£71,04 Unit Price incl. VAT
12
Exhaust pipe prot., black
AP8219554
Not Available
12
Exhaust pipe prot., al.
AP8219448
£82,21 Unit Price incl. VAT
12
Exhaust pipe prot., chr.black
AP8219438
Not Available
13
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
13
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
14
Washer 6,4x12,5*
AP8150178
£1,27 Unit Price incl. VAT
14
T bush *
AP8121075
£1,96 Unit Price incl. VAT
15
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
16
Exhaust pipe leading pipe
AP8219500
Not Available
17
Insulating washer
AP8221297
£1,50 Unit Price incl. VAT
17
Insulating washer
AP8120870
Not Available
18
Clip M6
AP8102376
Not Available
19
Exhaust pipe flange gasket
AP8219321
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
