1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1998
4
Trim
Daytona RS
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Crankcase
by
Timing system
Throttle body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Throttle body
GU30112501
Not Available
2
Injector IW724
GU30530500
Not Available
3
Washer
GU95020104
Not Available
4
screw
GU98200410
£1,68 Unit Price incl. VAT
5
Throttle body sensor
GU30530501
£219,20 Unit Price incl. VAT
6
RH intake manifold
GU30115045
Not Available
7
Maintenance
GU30110500
£49,87 Unit Price incl. VAT
8
Hex socket screw
GU98230510
£1,02 Unit Price incl. VAT
9
Washer
GU95004205
£1,13 Unit Price incl. VAT
10
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT
11
LH intake manifold
GU30115046
£184,73 Unit Price incl. VAT
12
Washer 6,15x11x0,8
GU95004206
Not Available
13
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
14
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
15
screw
GU98310610
£1,61 Unit Price incl. VAT
16
Clamp
GU12548401
£15,95 Unit Price incl. VAT
17
Intake hose
GU30114300
£10,04 Unit Price incl. VAT
18
Hose clamp 62/82 mm
GU12548201
Not Available
19
Intake hose
GU01114450
£10,84 Unit Price incl. VAT
20
screw
GU98054216
£1,02 Unit Price incl. VAT
21
Washer 5,9X3X0,8
GU29217960
£1,20 Unit Price incl. VAT
22
Throttle bracket
GU02118601
Not Available
23
Shear rivet
GU30468104
Not Available
24
Sparkplug caps kit
GU02999200
£45,89 Unit Price incl. VAT

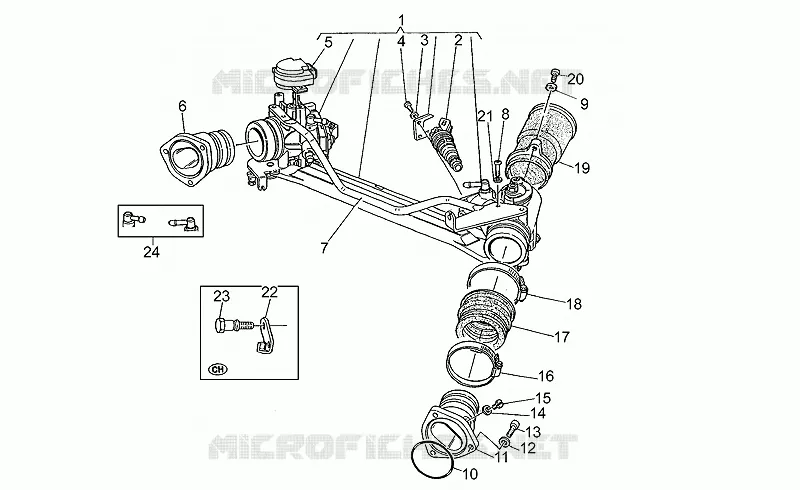

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
