1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1997
4
Trim
Daytona RS
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Saddle
by
Steering
Fuel tank
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Fuel tank
GU01100255
Not Available
1
Fuel tank
GU01100254
Not Available
1
Fuel tank
GU01100200
Not Available
1
Fuel tank red
GU01100250
Not Available
2
"Moto Guzzi" LH decal
GU01917900
Not Available
3
"Moto Guzzi" RH decal
GU01917800
£59,99 Unit Price incl. VAT
4
Fuel filler cap
GU01103920
Not Available
5
screw M5x30
GU98620230
£1,15 Unit Price incl. VAT
6
Hex socket screw
GU98622210
£1,02 Unit Price incl. VAT
7
screw
GU98622215
Not Available
8
Gasket
GU01101700
Not Available
9
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
10
Rubber spacer
GU66103415
£16,24 Unit Price incl. VAT
11
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
12
screw
GU98622420
Not Available
13
screw
GU98052398
£2,33 Unit Price incl. VAT
14
Washer
GU95000206
£1,02 Unit Price incl. VAT
15
Rubber spacer
GU30107100
£4,84 Unit Price incl. VAT
16
T bush
GU30103500
Not Available
17
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
18
Fuel cock
GU29105460
£25,48 Unit Price incl. VAT
19
Fuel level sensor
GU01103001
Not Available
20
Lock kit
GU01736820
Not Available
21
Decal set
GU01923350
Not Available
22
Sticker
GU29995735
£15,02 Unit Price incl. VAT
23
Gasket PVC
GU00823931080
£10,62 Unit Price incl. VAT
24
Non indented key blank
GU30735500
£10,22 Unit Price incl. VAT

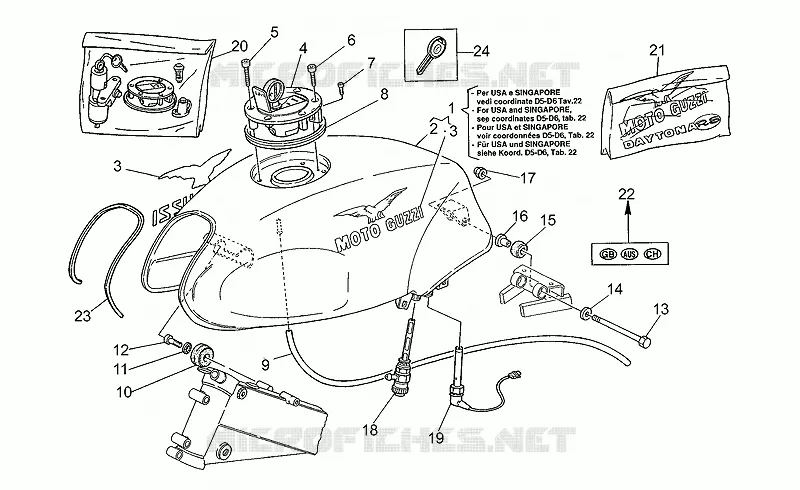

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
