1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1998
4
Trim
Daytona RS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Pillar-Optional
by
Rear wheel
Front wheel
1
2
3
4
5
5
5
6
6
7
8
9
10
11
12
1
Wheel Front
GU01610300
£215,75 Unit Price incl. VAT
2
Ball bearing 25x52x15
GU92205227
£31,73 Unit Price incl. VAT
3
Bearing internal spacer
GU01615300
Not Available
4
Bearing 20x52x15
GU92201821
£35,15 Unit Price incl. VAT
5
Front brake disc
GU01613351
Not Available
5
Front brake disc
GU01613350
£325,13 Unit Price incl. VAT
6
SCREW TCC IX M8X30 M8x30
GU98230820
£7,60 Unit Price incl. VAT
7
Front wheel spindle
GU01614100
Not Available
8
Spacer
GU01616300
£53,71 Unit Price incl. VAT
9
Air valve
GU28617760
£13,82 Unit Price incl. VAT
10
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
11
Washer
GU95004219
£1,06 Unit Price incl. VAT
12
Ring nut
GU93704160
Not Available

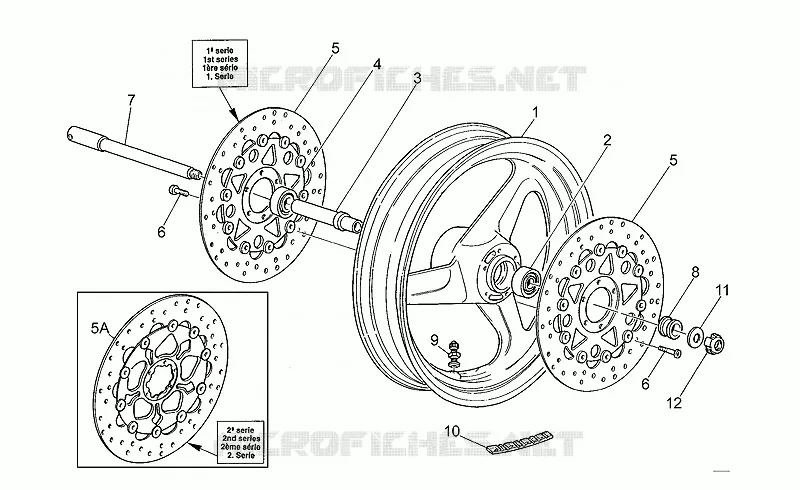

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Daytona RS

Rear bevel gear

Rear bevel gear

for Daytona RS from 1998

Dashboard

Dashboard

for Daytona RS from 1998

USA-SGP fuel fume cleaner

USA-SGP fuel fume cleaner

for Daytona RS from 1998

Headlight-Horn

Headlight-Horn

for Daytona RS from 1998

Taillight

Taillight

for Daytona RS from 1998

Air filter

Air filter

for Daytona RS from 1998

Front fork

Front fork

for Daytona RS from 1998

Swing arm

Swing arm

for Daytona RS from 1998

Electrical system

Electrical system

for Daytona RS from 1998

Front brake system

Front brake system

for Daytona RS from 1998

Rear brake system

Rear brake system

for Daytona RS from 1998

Handlebar - Controls

Handlebar - Controls

for Daytona RS from 1998

Front mudguard

Front mudguard

for Daytona RS from 1998

Foot rests - Lateral stand

Foot rests - Lateral stand

for Daytona RS from 1998

Pillar-Optional

Pillar-Optional

for Daytona RS from 1998

Front wheel

Front wheel

for Daytona RS from 1998

Rear wheel

Rear wheel

for Daytona RS from 1998

Saddle

Saddle

for Daytona RS from 1998

Fuel tank

Fuel tank

for Daytona RS from 1998

Steering

Steering

for Daytona RS from 1998

Rear frame

Rear frame

for Daytona RS from 1998

Frame

Frame

for Daytona RS from 1998

Electronic ignition

Electronic ignition

for Daytona RS from 1998

Drive shaft

Drive shaft

for Daytona RS from 1998

Driven shaft

Driven shaft

for Daytona RS from 1998

Fuel supply

Fuel supply

for Daytona RS from 1998

Specific tools I

Specific tools I

for Daytona RS from 1998

Specific tools II

Specific tools II

for Daytona RS from 1998

Gear box

Gear box

for Daytona RS from 1998

Driveshaft

Driveshaft

for Daytona RS from 1998

Crankcase

Crankcase

for Daytona RS from 1998

Throttle body

Throttle body

for Daytona RS from 1998

Timing system

Timing system

for Daytona RS from 1998

Oil filter

Oil filter

for Daytona RS from 1998

Clutch

Clutch

for Daytona RS from 1998

Current generator

Current generator

for Daytona RS from 1998

Exhaust unit

Exhaust unit

for Daytona RS from 1998

Booster kit

Booster kit

for Daytona RS from 1998

Starter motor

Starter motor

for Daytona RS from 1998

Gear lever

Gear lever

for Daytona RS from 1998

Oil pump

Oil pump

for Daytona RS from 1998

Oil radiator

Oil radiator

for Daytona RS from 1998

Transmission cage

Transmission cage

for Daytona RS from 1998

Heads

Heads

for Daytona RS from 1998

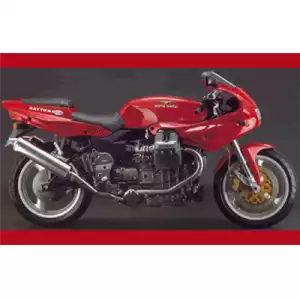

MOTO GUZZI LAVERDA SCARABEO Daytona RS 1998
