1
Engine displacement
1000
2
Model
DAYTONA
3
Year
1998
4
Trim
Daytona RS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Driveshaft
by
Throttle body
Crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Crankcase
GU01000750
Not Available
2
Disc
GU12003900
Not Available
3
Stud bolt M8x66
GU96508066
£50,56 Unit Price incl. VAT
4
Washer
GU95004208
£0,70 Unit Price incl. VAT
5
Nut
GU92781081
£10,21 Unit Price incl. VAT
6
Coupling bush
GU12018900
£10,75 Unit Price incl. VAT
7
Stud bolt M8x75
GU96508075
£13,44 Unit Price incl. VAT
8
Nut
GU92602208
Not Available
9
Pin
GU95512081
£4,34 Unit Price incl. VAT
10
Cover
GU12065400
£24,20 Unit Price incl. VAT
11
Complete flange
GU14011900
Not Available
11
Flange min.0,2 mm
GU14011901
£50,76 Unit Price incl. VAT
12
Pin
GU12012200
£15,28 Unit Price incl. VAT
13
screw
GU98054425
Not Available
14
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
15
Cover gasket
GU12001200
Not Available
16
Timing system cover
GU01001450
Not Available
17
Cover
GU30056800
Not Available
18
Hex socket screw M6x20
GU98612320
£1,06 Unit Price incl. VAT
19
Cover
GU30001600
Not Available
20
Hex socket screw
GU98622316
Not Available
21
Gasket ring 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
22
Gasket
GU01003650
£11,50 Unit Price incl. VAT
23
Motor oil flange
GU01003252
Not Available
24
Motor oil cup
GU01003550
Not Available
25
Gasket set
GU01998950
£583,32 Unit Price incl. VAT
26
Cover
GU30002100
£23,59 Unit Price incl. VAT
27
Gasket
GU01003600
£12,05 Unit Price incl. VAT
28
screw
GU98622322
£1,02 Unit Price incl. VAT
29
Washer 6,15x11x0,8
GU95004206
Not Available
30
Oil unload plug
GU30003770
£13,97 Unit Price incl. VAT
31
Oil level plug
GU01004900
Not Available
32
O-ring 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
33
Complete flange
GU12011400
Not Available
33
Flange min.0,4 mm
GU12011402
£61,15 Unit Price incl. VAT
33
Flange min.0,6 mm
GU12011403
£61,15 Unit Price incl. VAT
33
Flange min.0,2 mm
GU12011401
£63,46 Unit Price incl. VAT
34
Pin
GU12011700
£14,52 Unit Price incl. VAT
35
Gasket ring
GU90405367
£35,53 Unit Price incl. VAT
36
Gasket
GU12011800
£3,74 Unit Price incl. VAT
37
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
38
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
39
screw
GU98622320
£0,96 Unit Price incl. VAT
40
Plug
GU01003400
£78,97 Unit Price incl. VAT
41
O-ring
GU90706948
£12,05 Unit Price incl. VAT
42
Gasket
GU10528900
£4,45 Unit Price incl. VAT
43
Engine w/o gearbox
GU01690250
Not Available
43
Engine w/o gearbox
GU400034200600
Not Available

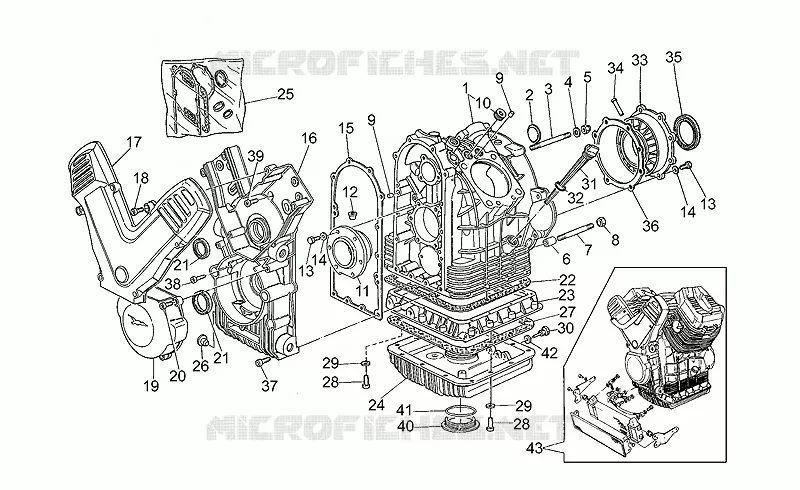

Find the detailed Crankcase MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
