Engine displacement
1000
2
Model
DAYTONA
3
Year
1993
4
Trim
Daytona
5
Parts Catalog
Rear brake system
6
Parts Diagram
Parts Catalog
Front brake system
by
Handlebar
Rear brake system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
34
35
36
37
38
39
40
41
41
41
41
41
42
42
43
44
45
46
47
48
49
50
51
1
Rear brake lever
GU37677005
Not Available
2
Bush 18 mm est.
GU28252060
£9,11 Unit Price incl. VAT
3
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
4
screw
GU98230616
£13,40 Unit Price incl. VAT
5
Pin
GU30676600
Not Available
6
O-ring
GU90706141
Not Available
7
Washer
GU95100343
Not Available
8
Cam
GU30677600
£17,08 Unit Price incl. VAT
9
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
10
Ball joint
GU30675300
Not Available
11
Nut
GU92601206
Not Available
12
Pump rod
GU30675200
Not Available
13
screw
GU98622320
£0,96 Unit Price incl. VAT
14
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
15
Rear master cylinder
GU30666900
Not Available
16
Protection collar
GU30530525
Not Available
17
Pump connection overhaul unit
GU19659500
£22,94 Unit Price incl. VAT
18
Pump protection plate
GU30665400
Not Available
19
screw
GU98230620
£2,04 Unit Price incl. VAT
20
Washer 6,4x10x0,7
GU14217901
Not Available
21
Oil pipe
GU30657500
£136,78 Unit Price incl. VAT
22
Gasket
GU25656100
£1,57 Unit Price incl. VAT
23
Stop switch
GU14657050
£48,26 Unit Price incl. VAT
24
Hose clamp
GU12006500
£0,91 Unit Price incl. VAT
25
screw
GU98054310
Not Available
26
Washer 6,15x11x0,8
GU95004206
Not Available
27
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
28
Oil pipe
GU00823950050
£26,57 Unit Price incl. VAT
29
Hose clamp
GU19157800
Not Available
30
Brake oil tank complete
GU30663500
Not Available
31
Tank cover
GU30661101
£23,53 Unit Price incl. VAT
32
Hex socket screw M6x16
GU98612316
£1,06 Unit Price incl. VAT
33
Rear bracket
GU30635800
£136,34 Unit Price incl. VAT
34
Bushing
GU30636100
Not Available
35
Gasket
GU90706253
£1,24 Unit Price incl. VAT
36
Bushing
GU30634201
Not Available
37
Reaction rod assy.
GU30636600
Not Available
38
Nut
GU92602208
Not Available
39
Ball joint
GU30638100
Not Available
40
screw
GU98150455
Not Available
41
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
42
Nut
GU92630108
£1,02 Unit Price incl. VAT
43
screw
GU98150440
£11,58 Unit Price incl. VAT
44
Rear brake caliper, gold
GU30653001
Not Available
45
screw
GU98602425
Not Available
46
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
47
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
48
Brake caliper cover
GU30654700
£19,94 Unit Price incl. VAT
49
Pin+Brake spring
GU30659101
£24,59 Unit Price incl. VAT
50
Bleeder+cap BREMBO D.10
GU31659260
£16,82 Unit Price incl. VAT
51
Brake caliper reaction rod
GU30636500
Not Available

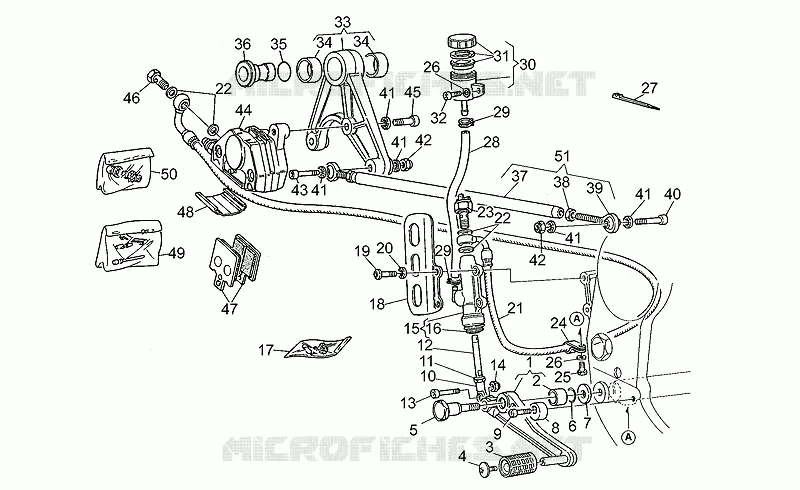

Find the detailed Rear brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
