1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2001
4
Trim
California Stone
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Taillight
by
Carbon filter
Air filter
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
1
Air box
GU30114060
Not Available
2
Air filter
GU30113600
£22,42 Unit Price incl. VAT
3
Filter cover
GU30113460
£49,61 Unit Price incl. VAT
4
screw M5x30
GU98620230
£1,15 Unit Price incl. VAT
5
Washer
GU95000205
£0,96 Unit Price incl. VAT
6
screw
GU98230612
£1,36 Unit Price incl. VAT
7
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
8
Joint
GU30114660
£20,87 Unit Price incl. VAT
9
Hand cone-type
GU30114560
£10,54 Unit Price incl. VAT
10
Hex socket screw
GU98350210
£1,26 Unit Price incl. VAT
11
Nut
GU92660208
£1,94 Unit Price incl. VAT
12
Rubber pipe 12,5X7,8 5/16"
GU00823956080
£45,66 Unit Price incl. VAT
13
Hose clamp
GU93305017
£10,24 Unit Price incl. VAT
14
Joint
GU29116960
£22,85 Unit Price incl. VAT
15
Joint
GU29115860
£17,53 Unit Price incl. VAT
16
Gasket
GU90714053
£5,98 Unit Price incl. VAT
17
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
18
Rubber half-pipe
GU95985223
£8,12 Unit Price incl. VAT
19
Gasket
GU90714082
£1,08 Unit Price incl. VAT
20
screw
GU98620225
£0,95 Unit Price incl. VAT

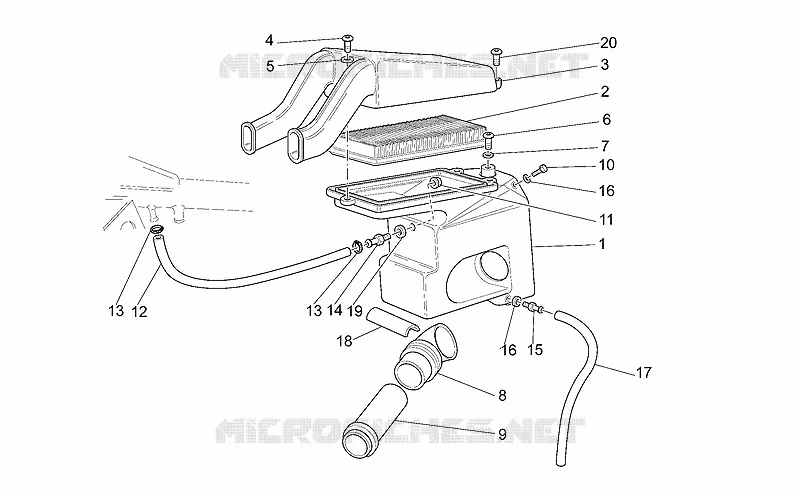

Find the detailed Air filter MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
