Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Front/Rear mudguard
by
Rear brake caliper
Foot rests
1
2
3
4
5
6
7
8
9
10
10
11
12
13
13
14
15
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
1
RH craddle arm
GU03420330
Not Available
2
LH craddle arm
GU03422130
£126,91 Unit Price incl. VAT
3
RH cover chromium plated
GU03446930
£38,08 Unit Price incl. VAT
4
LH cover chromium plated
GU03447430
Not Available
5
screw
GU98230621
Not Available
6
Rubber spacer
GU93180115
£1,76 Unit Price incl. VAT
7
Antivibration bush M6
GU93231606
£1,79 Unit Price incl. VAT
8
Maintenance
GU03443930
Not Available
9
Top screw
GU98230822
Not Available
10
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
11
Spacer
GU03444230
£9,32 Unit Price incl. VAT
12
Pin
GU14429500
Not Available
13
Washer
GU95000213
£0,96 Unit Price incl. VAT
14
Nut
GU92602312
£1,58 Unit Price incl. VAT
15
Silencer support
GU03423940
Not Available
16
RH front foot rest pipe
GU23440710
Not Available
17
Maintenance
GU03443740
Not Available
18
LH front foot rest pipe
GU23441810
£84,12 Unit Price incl. VAT
19
Rubber pedal
GU03443240
Not Available
20
Washer
GU95000208
£5,23 Unit Price incl. VAT
21
screw
GU98054314
£0,49 Unit Price incl. VAT
22
Special washer
GU61013800
£1,26 Unit Price incl. VAT
23
Spacer
GU91180602
£10,21 Unit Price incl. VAT
24
screw
GU98620435
Not Available
25
Kit
GU03979340
Not Available
26
Nut
GU92630208
£1,58 Unit Price incl. VAT
27
screw M12x35
GU98623635
Not Available
28
screw
GU98230826
£7,98 Unit Price incl. VAT
29
Plate
GU17444250
£8,28 Unit Price incl. VAT
30
Washer
GU95100414
£1,58 Unit Price incl. VAT
31
Notched washer
GU95021112
£0,65 Unit Price incl. VAT
32
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
33
Nut
GU92602312
£1,58 Unit Price incl. VAT
34
screw M12x40
GU98623640
Not Available
35
Cover
GU93180245
£2,63 Unit Price incl. VAT
36
Washer
GU95000206
£1,02 Unit Price incl. VAT
37
Cradle arms conn.crosspiece
GU30425260
£42,40 Unit Price incl. VAT
38
screw
GU98231022
£7,98 Unit Price incl. VAT
39
Notched washer
GU95021110
Not Available
40
Gasket
GU00823931055
£10,76 Unit Price incl. VAT
41
screw
GU98230851
£2,04 Unit Price incl. VAT
42
Nut
GU92630508
£1,67 Unit Price incl. VAT
43
Maintenance
GU03443730
£34,97 Unit Price incl. VAT
44
Pin
GU23442210
£36,29 Unit Price incl. VAT
45
Split pin
GU95401215
£1,33 Unit Price incl. VAT
46
Spring
GU03441130
£5,10 Unit Price incl. VAT
47
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
48
Spring washer
GU95129130
£10,73 Unit Price incl. VAT

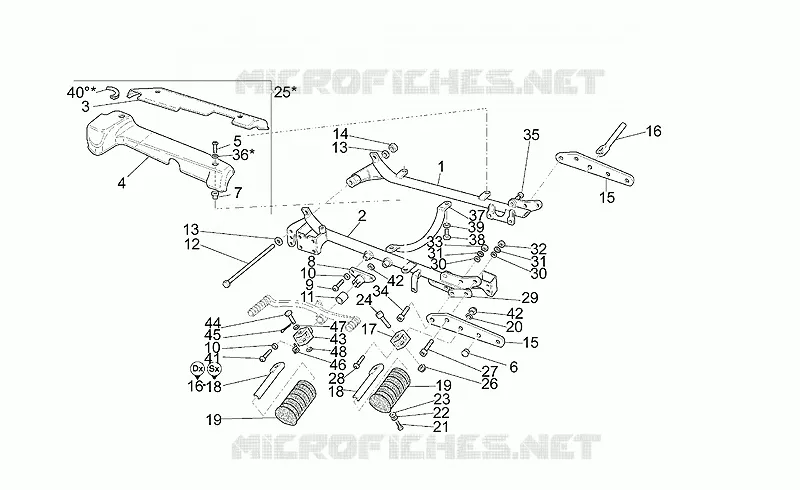

Find the detailed Foot rests MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
