1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2004
4
Trim
California EV PI
5
Parts Catalog
Windshield
6
Parts Diagram
Parts Catalog
Rear brake caliper
by
Luggage rack
Windshield
1
2
3
4
4
5
5
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Windshield, grey l.
GU03575472
£207,67 Unit Price incl. VAT
1
Headlight windshield black
GU03575426
Not Available
1
Headlight windshield blank
GU03575415
£43,84 Unit Price incl. VAT
1
Windshield, grey m.
GU03575471
Not Available
1
Windshield, blue
GU03575470
Not Available
1
Windshield, red
GU03575416
Not Available
2
Windscreen
GU03577210
£138,44 Unit Price incl. VAT
3
Steel cover
GU03575515
£38,08 Unit Price incl. VAT
4
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
5
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
6
Hex socket screw
GU98350215
£0,85 Unit Price incl. VAT
7
Flanged nut M6x9
GU92660007
£0,71 Unit Price incl. VAT
8
Hex socket screw M6x25
GU98370625
£5,23 Unit Price incl. VAT
9
RH windshield support
GU03578515
£72,68 Unit Price incl. VAT
10
LH windshield support
GU03578615
£72,68 Unit Price incl. VAT
11
RH clamp
GU03578715
£40,57 Unit Price incl. VAT
12
LH clamp
GU03578815
£40,57 Unit Price incl. VAT
13
Hex socket screw M6x35
GU98370635
£1,94 Unit Price incl. VAT
14
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
15
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
16
Gasket
GU03574115
£30,02 Unit Price incl. VAT
17
Gasket
GU03573915
£7,72 Unit Price incl. VAT
18
Spacer
GU91110609
£7,60 Unit Price incl. VAT
19
Spacer
GU91120605
£13,44 Unit Price incl. VAT
20
Sticker R.H.copper line
GU03925770
Not Available
21
Sticker L.H.copper line
GU03925970
Not Available

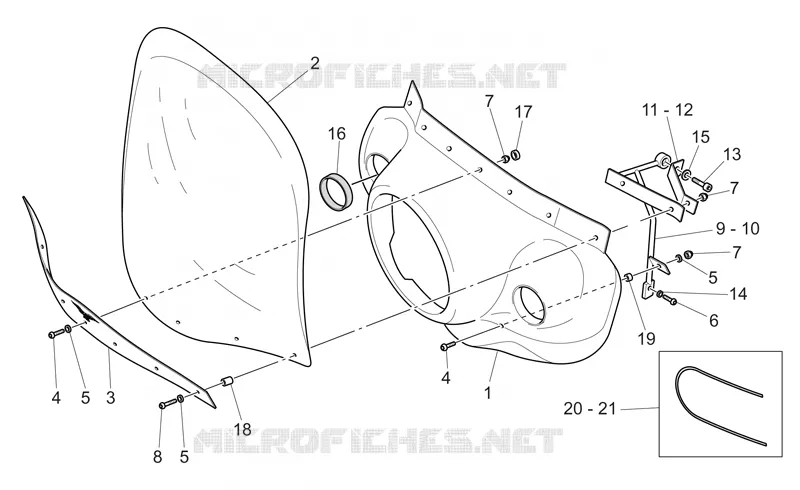

Find the detailed Windshield MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
