Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2003
4
Trim
California EV PI
5
Parts Catalog
Craddle arm-Foot rests
6
Parts Diagram
Parts Catalog
Transmission cage
by
Throttle body
Craddle arm-Foot rests
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
32
33
34
35
36
37
38
39
40
41
42
1
RH craddle arm
GU03420300
£115,37 Unit Price incl. VAT
2
LH craddle arm
GU03422100
£115,37 Unit Price incl. VAT
3
RH cover chromium plated
GU03446900
£47,30 Unit Price incl. VAT
4
LH cover chromium plated
GU03447410
Not Available
5
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
6
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
7
Antivibration bush M6
GU93231606
£1,79 Unit Price incl. VAT
8
Mat
GU03447070
£77,34 Unit Price incl. VAT
9
Foot rest
GU03443555
£77,72 Unit Price incl. VAT
10
Hex screw M8x30
GU98082430
£2,35 Unit Price incl. VAT
11
Nut
GU92630108
£1,02 Unit Price incl. VAT
12
Pin
GU03429500
Not Available
13
Washer 13x24x2,5
GU95008313
£1,26 Unit Price incl. VAT
14
Gasket
GU00823931055
£10,76 Unit Price incl. VAT
15
RH foot rest support polished
GU29443550
Not Available
16
RH front foot rest pipe
GU23440710
Not Available
17
LH footrest support polished
GU29446050
Not Available
18
LH front foot rest pipe
GU23441810
£84,12 Unit Price incl. VAT
19
Rubber pedal
GU23443210
£17,44 Unit Price incl. VAT
20
Plate
GU23441210
£17,46 Unit Price incl. VAT
21
Hex screw M6x14
GU98084314
£1,26 Unit Price incl. VAT
22
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
23
Spacer
GU91180602
£10,21 Unit Price incl. VAT
24
screw
GU03442200
£10,73 Unit Price incl. VAT
25
Washer 8,4x15
GU03270300
£0,19 Unit Price incl. VAT
26
Nut M8
GU92640508
£1,58 Unit Price incl. VAT
27
screw M12x35
GU98683635
£10,73 Unit Price incl. VAT
28
screw
GU98681650
£10,21 Unit Price incl. VAT
29
Plate
GU17444250
£8,28 Unit Price incl. VAT
30
Washer
GU95100414
£1,58 Unit Price incl. VAT
31
Notched washer
GU95022112
£1,02 Unit Price incl. VAT
32
Low nut M12x1,25
GU92606512
£2,04 Unit Price incl. VAT
33
Nut M12x1,25
GU92606312
£1,02 Unit Price incl. VAT
34
screw M12x40
GU98683640
£10,21 Unit Price incl. VAT
35
Cover
GU93180245
£2,63 Unit Price incl. VAT
36
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
37
Cradle arms conn.crosspiece
GU30425260
£42,40 Unit Price incl. VAT
38
screw
GU98350522
£1,94 Unit Price incl. VAT
39
Notched washer
GU95022110
£1,31 Unit Price incl. VAT
40
Pad
GU29447150
£1,76 Unit Price incl. VAT
41
RH footrest
GU23440210
£24,23 Unit Price incl. VAT
42
LH footrest
GU23441310
£143,99 Unit Price incl. VAT

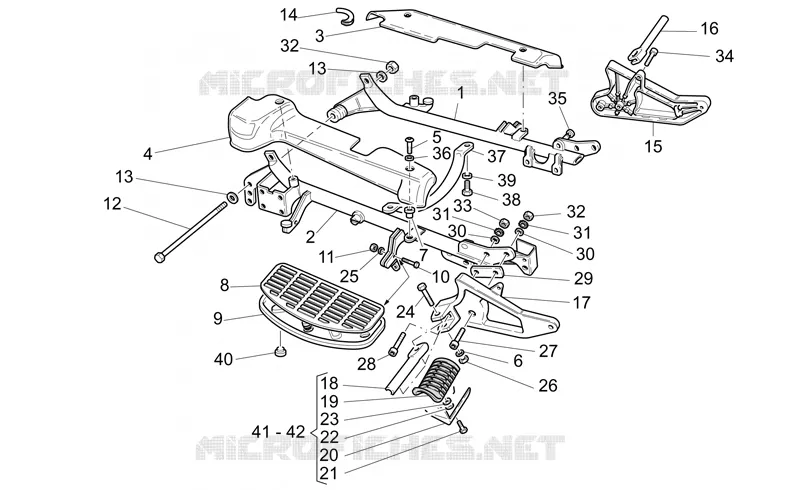

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
