Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Dashboard
by
Electrical system
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
1
Main wiring harness
GU03747155
£138,44 Unit Price incl. VAT
1
Main wiring harness
GU03747156
£288,43 Unit Price incl. VAT
2
Dashboard cable
GU03747270
£323,04 Unit Price incl. VAT
3
Plate
GU30749760
£12,28 Unit Price incl. VAT
4
Hex socket screw M6x10
GU98682310
£1,26 Unit Price incl. VAT
5
Clip
GU28576590
£2,35 Unit Price incl. VAT
6
Clip
GU30922260
£2,64 Unit Price incl. VAT
7
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
8
Wire
GU03748440
£33,04 Unit Price incl. VAT
9
Cap
GU03707140
£3,88 Unit Price incl. VAT
10
Taillight wiring harn.
GU03753170
Not Available
11
Ground-battery lead
GU02747901
£22,31 Unit Price incl. VAT
12
plate
GU03746370
£28,87 Unit Price incl. VAT
13
Hex socket screw
GU98682318
£1,20 Unit Price incl. VAT
14
Rubber spacer
GU91551080
£4,69 Unit Price incl. VAT
15
Spacer
GU91180607
Not Available
16
RH clamp
GU30477101
Not Available
17
LH plate
GU30477200
£10,22 Unit Price incl. VAT
18
Battery 12V-16Ah
GU03704550
Not Available
18
Battery
GU03704571
Not Available
18
Battery
GU03704570
£107,08 Unit Price incl. VAT
19
Washer 6,2X18X1
GU95100118
£1,87 Unit Price incl. VAT
20
Nut M6
GU92630707
£2,04 Unit Price incl. VAT
21
Relay Siemens A302B1005
GU01732530
£45,61 Unit Price incl. VAT
21
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
22
Fuse 5A
GU28742558
£0,70 Unit Price incl. VAT
22
Fuse 30A
GU28742562
Not Available
22
Fuse 15A
GU28742560
Not Available
22
Fuse 20A
GU28742561
£6,92 Unit Price incl. VAT
23
Flasher unit
GU17750520
Not Available
24
Block
GU17751200
Not Available
25
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
26
Battery
GU03704540
£107,08 Unit Price incl. VAT
27
Battery holder
GU28707050
£27,20 Unit Price incl. VAT
28
Cap
GU30759600
£3,64 Unit Price incl. VAT
29
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
30
Flasher unit
AP8127286
Not Available
30
Flasher unit
AP8124235
£24,49 Unit Price incl. VAT
31
Socket
AP8124768
Not Available
32
Battery holder
GU03418270
Not Available
32
Battery holder
GU03116745
£35,74 Unit Price incl. VAT
33
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
34
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
35
plate
GU03785470
£13,37 Unit Price incl. VAT
36
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT

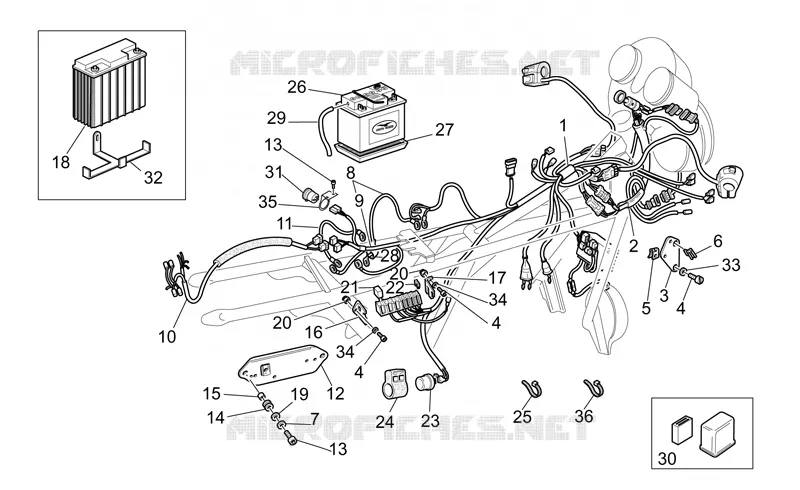

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
