Frame for MOTO GUZZI LAVERDA SCARABEO California EV PI from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Frame

1

Frame

GU03400152

Not Available

2

Rubber spacer

GU93180216

£2,80 Unit Price incl. VAT

3

Front protection

GU30450260

Not Available

4

screw

GU98681650

£10,21 Unit Price incl. VAT

5

Spacer

GU91181210

£6,42 Unit Price incl. VAT

6

Notched washer

GU95022112

£1,02 Unit Price incl. VAT

7

Nut M12x1,25

GU92606312

£1,02 Unit Price incl. VAT

8

Hex socket screw

GU98370845

£4,52 Unit Price incl. VAT

9

Washer 8,4x15

GU03270300

£0,19 Unit Price incl. VAT

10

Operator's handbook I-GB-F-D

GU03900072

£45,54 Unit Price incl. VAT

10

Operator's handbook I-GB-F-D

GU03900071

Not Available

11

Plate

GU17451750

£7,56 Unit Price incl. VAT

12

Stud bolt

GU03469200

£12,95 Unit Price incl. VAT

13

Captive nut

GU92660801

£2,04 Unit Price incl. VAT

14

Pad

GU39103400

£10,22 Unit Price incl. VAT

15

screw

GU98882316

£0,89 Unit Price incl. VAT

16

Disc

GU39103500

Not Available

17

Gasket PVC

GU00823931080

£10,62 Unit Price incl. VAT

18

Washer 6,4x12

GU03013800

£1,98 Unit Price incl. VAT

19

Nut

GU92606206

£1,02 Unit Price incl. VAT

20

Holder

GU03479545

£38,65 Unit Price incl. VAT

21

plate

GU30461360

Not Available

22

Hex socket screw M8x16

GU98350416

£0,38 Unit Price incl. VAT

23

Hex socket screw M8x20

GU98682420

£1,02 Unit Price incl. VAT

24

Plate

GU03462345

£38,28 Unit Price incl. VAT

25

Saddle lock

GU30462060

£35,36 Unit Price incl. VAT

26

Nut M8

GU92640508

£1,58 Unit Price incl. VAT

27

Saddle lock

GU30466860

Not Available

28

Pad

GU19705900

£4,74 Unit Price incl. VAT

29

Hex socket screw M6x12

GU98350312

£2,36 Unit Price incl. VAT

30

Cover

GU93180080

£1,98 Unit Price incl. VAT

31

Saddle release cable

GU30462160

£37,70 Unit Price incl. VAT

32

Pin

GU95522508

£1,64 Unit Price incl. VAT

33

Bracket

GU30463260

£8,03 Unit Price incl. VAT

34

Shear rivet

GU66468115

£4,32 Unit Price incl. VAT

35

Plate

GU29418360

£65,18 Unit Price incl. VAT

36

screw

GU98084416

Not Available

37

Washer 8,4X15X1,5

GU95008208

£1,27 Unit Price incl. VAT

38

Toolkit

GU03909900

£57,01 Unit Price incl. VAT

39

Bike cover

GU30970200

£6,17 Unit Price incl. VAT

40

Stud bolt

GU03467343

£8,63 Unit Price incl. VAT

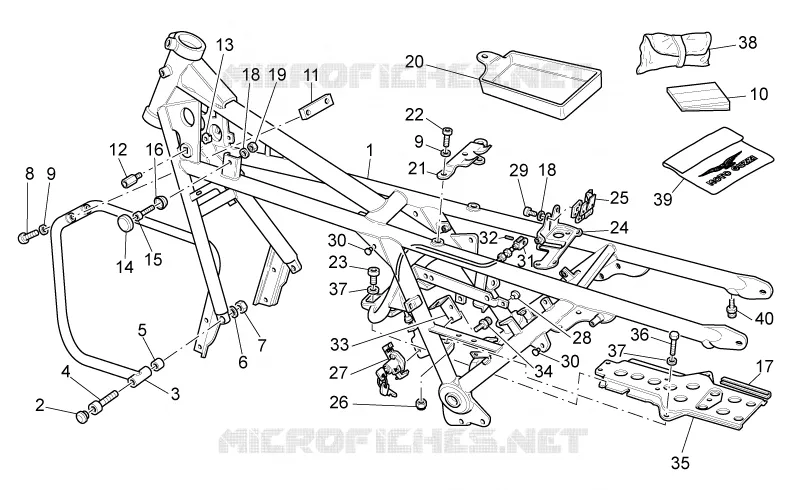

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
