1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2004
4
Trim
California EV PI
5
Parts Catalog
Heads
6
Parts Diagram
Parts Catalog
Crankshaft - Piston
by
Stands
Heads
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
RH head assy w/h valve grey
GU03022130
£196,13 Unit Price incl. VAT
2
LH head assy without valve grey
GU30022260
£204,20 Unit Price incl. VAT
3
Exhaust valve guide
GU13036801
£59,48 Unit Price incl. VAT
4
Intake valve guide
GU14036860
£46,54 Unit Price incl. VAT
5
Exhaust valve
GU03036100
Not Available
6
Intake valve
GU03036000
£55,46 Unit Price incl. VAT
7
Snap ring
GU90353016
£1,02 Unit Price incl. VAT
8
Washer 14,2x31x1
GU13037200
£2,75 Unit Price incl. VAT
9
Washer 14,2x31x0,3
GU14037300
£2,26 Unit Price incl. VAT
10
Washer plate
GU01038730
£3,98 Unit Price incl. VAT
11
Outer spring
GU13037400
£15,92 Unit Price incl. VAT
11
Outer spring
GU37037405
£17,94 Unit Price incl. VAT
12
Inner spring
GU37037605
£17,58 Unit Price incl. VAT
12
Inner spring
GU13037600
£17,58 Unit Price incl. VAT
13
Upper cup
GU37038005
£45,84 Unit Price incl. VAT
13
Upper cup
GU14038000
£28,34 Unit Price incl. VAT
14
Valve half-cone
GU12038100
£12,37 Unit Price incl. VAT
15
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
16
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
17
Column nut
GU13021900
£15,36 Unit Price incl. VAT
18
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
19
Stud bolt
GU96508040
£12,31 Unit Price incl. VAT
20
Gasket
GU30022060
£23,64 Unit Price incl. VAT
21
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
22
Rocker arm support
GU14034865
£54,23 Unit Price incl. VAT
23
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
24
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT
25
RH rocker arm assy
GU03030230
Not Available
25
RH rocker arm assy
GU14030201
£173,05 Unit Price incl. VAT
26
LH rocker arm assy
GU14030401
£173,05 Unit Price incl. VAT
26
LH rocker arm assy
GU03030430
Not Available
27
Bushing 15x18x43
GU91111511
£53,51 Unit Price incl. VAT
28
Lower cup 14,2x32x5
GU01037030
£23,16 Unit Price incl. VAT
28
Lower cup
GU03037032
£31,16 Unit Price incl. VAT
29
Hex socket screw M6x25
GU98692325
£5,23 Unit Price incl. VAT
30
Spring
GU94322215
£10,33 Unit Price incl. VAT
31
Washer 15,2x26x1
GU90118152
£12,17 Unit Price incl. VAT
32
Washer 15,2x26x0,5
GU10032700
£1,25 Unit Price incl. VAT
33
Rocker shaft
GU12031800
Not Available
34
Hex screw
GU98084316
£1,20 Unit Price incl. VAT
35
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
36
RH/LH head cover polished
GU03023530
Not Available
37
Spark plug cover
GU03941055
Not Available
38
Cover gasket
GU14023760
£9,22 Unit Price incl. VAT
39
Adjuster screw
GU03034030
£24,72 Unit Price incl. VAT
40
Nut
GU10034100
£13,40 Unit Price incl. VAT

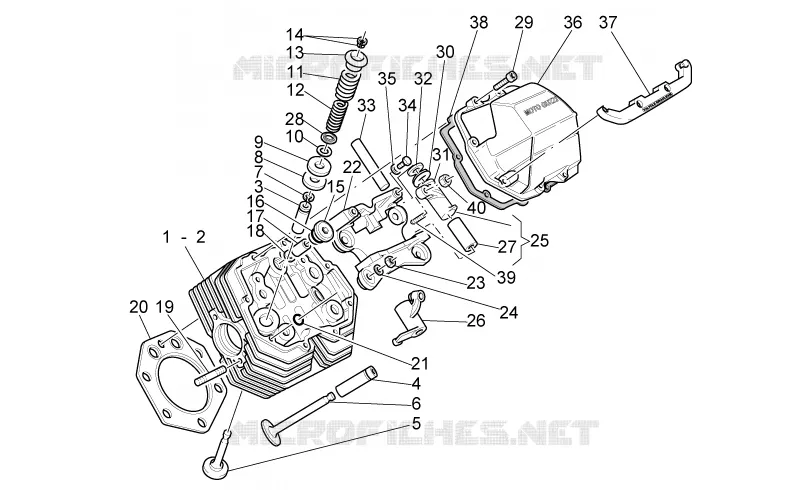

Find the detailed Heads MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
