1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2003
4
Trim
California EV PI
5
Parts Catalog
Rear lights
6
Parts Diagram
Parts Catalog
Front wheel
by
Crankshaft - Piston
Rear lights
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
22
22
22
23
24
25
26
27
28
29
30
1
Headlight holder grey m.
GU03475815
Not Available
1
Headlight holder black
GU03475860
£31,15 Unit Price incl. VAT
1
Headlight holder blue
GU03475814
Not Available
1
Headlight holder blank
GU03475830
£6,92 Unit Price incl. VAT
1
Headlight holder red vintage
GU03475813
£36,92 Unit Price incl. VAT
1
Headlight holder grey l.
GU03475816
£74,99 Unit Price incl. VAT
2
Support rubber part
GU03475931
£33,50 Unit Price incl. VAT
3
LH front/RH rear turn indic.
GU03751630
£51,10 Unit Price incl. VAT
4
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
5
Washer
GU95001206
Not Available
6
Nut
GU92660600
£1,15 Unit Price incl. VAT
7
RH front/LH rear turn indic.
GU03751631
£37,82 Unit Price incl. VAT
8
Lamp
GU93450127
£3,11 Unit Price incl. VAT
9
Turn indicator lens
GU31753765
Not Available
10
Taillight
GU03740930
£87,59 Unit Price incl. VAT
11
Hex socket screw M4x50
GU98680150
£2,35 Unit Price incl. VAT
12
Lamp
GU93450224
£7,44 Unit Price incl. VAT
13
Bush
GU03741230
£8,02 Unit Price incl. VAT
14
Antivibration bush M4x7,9x12,7
GU93231604
£8,03 Unit Price incl. VAT
15
Bushing
GU03742030
£5,23 Unit Price incl. VAT
16
Rear headlight assembly red
GU03758472
£196,13 Unit Price incl. VAT
16
Rear headlight assembly black
GU03758471
£409,74 Unit Price incl. VAT
16
Rear headlight assembly grey l.
GU03758475
£184,60 Unit Price incl. VAT
16
Rear headlight assembly blue
GU03758473
£184,60 Unit Price incl. VAT
16
Rear headlight assembly grey m.
GU03758474
Not Available
17
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
18
Number plate holder
GU01474630
£78,94 Unit Price incl. VAT
19
Number plate holder support
GU03474530
£22,93 Unit Price incl. VAT
20
screw
GU98370515
£2,36 Unit Price incl. VAT
21
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
22
Flanged nut
GU92650035
£2,35 Unit Price incl. VAT
23
Cover
GU03438830
Not Available
24
Cover
GU03438831
Not Available
25
Maintenance
GU03475330
£75,61 Unit Price incl. VAT
26
Reflector
GU31745865
£11,08 Unit Price incl. VAT
27
Nut
GU92650034
£1,20 Unit Price incl. VAT
28
Taillight wiring harn.
GU03753170
Not Available
29
Rear reflector, red
GU14781570
Not Available
30
Reflector support
GU14781870
£10,69 Unit Price incl. VAT

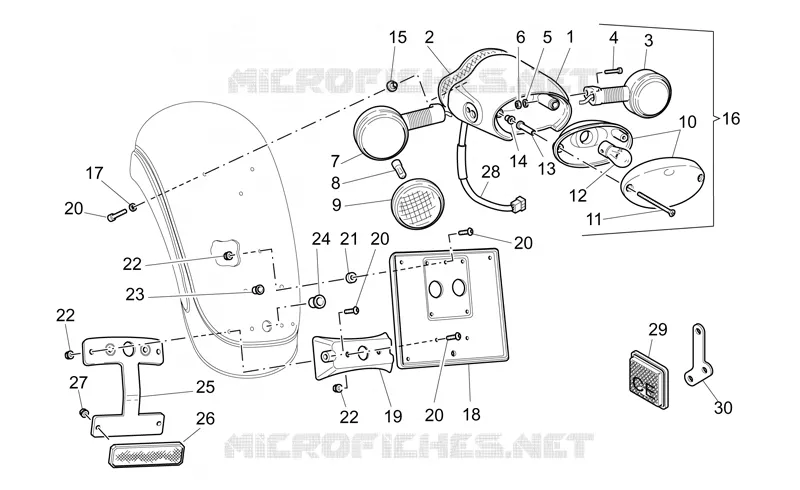

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
