Stands for MOTO GUZZI LAVERDA SCARABEO California EV PI from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Stands

1

Central stand

GU03430311

£433,75 Unit Price incl. VAT

2

Washer 6,4x12

GU03013800

£1,98 Unit Price incl. VAT

3

Lateral stand

GU03432070

£74,99 Unit Price incl. VAT

4

RH plate

GU03432970

£17,59 Unit Price incl. VAT

5

LH plate

GU03433270

£53,32 Unit Price incl. VAT

6

Spring

GU03434011

£10,94 Unit Price incl. VAT

7

screw

GU98082545

£1,50 Unit Price incl. VAT

8

Washer 10,2X18X2

GU95008210

£0,85 Unit Price incl. VAT

9

Washer

GU03433400

£7,98 Unit Price incl. VAT

10

LH bush

GU14433500

£13,44 Unit Price incl. VAT

11

Nut M10X1,5

GU92630110

£4,01 Unit Price incl. VAT

12

Pin M12x250

GU03429600

£57,84 Unit Price incl. VAT

13

Washer 13x24x2,5

GU95008313

£1,26 Unit Price incl. VAT

14

RH inner spacer

GU30429960

£16,14 Unit Price incl. VAT

15

RH outer spacer

GU30429860

£14,27 Unit Price incl. VAT

16

Nut M12x1,25

GU92606312

£1,02 Unit Price incl. VAT

17

plate

GU18432760

£14,10 Unit Price incl. VAT

18

Spring

GU03434070

£12,16 Unit Price incl. VAT

19

Adjuster screw

GU98084216

£1,20 Unit Price incl. VAT

20

Nut

GU92606205

£1,02 Unit Price incl. VAT

21

Block

GU03433470

Not Available

22

Lock

GU03432740

£28,52 Unit Price incl. VAT

23

Washer 6,4x12x1,2

GU95008306

£0,58 Unit Price incl. VAT

24

Nut M6

GU92630707

£2,04 Unit Price incl. VAT

25

Support clamp

GU03433850

£13,03 Unit Price incl. VAT

27

Disc

GU39103500

Not Available

28

Hex socket screw M8x40

GU98680440

£1,02 Unit Price incl. VAT

29

Switch

GU03759150

£41,26 Unit Price incl. VAT

30

Washer 8,4x15

GU03270300

£0,19 Unit Price incl. VAT

31

Nut

GU92606508

£1,26 Unit Price incl. VAT

32

Pad

GU39103400

£10,22 Unit Price incl. VAT

33

RH bush

GU30433560

£13,44 Unit Price incl. VAT

34

Hex screw M10x50

GU98082550

£1,49 Unit Price incl. VAT

35

Hex socket screw M8x16

GU98682416

Not Available

36

LH inner spacer

GU30429760

£16,14 Unit Price incl. VAT

37

LH outer spacer

GU14429900

£19,45 Unit Price incl. VAT

38

Hex screw

GU98084316

£1,20 Unit Price incl. VAT

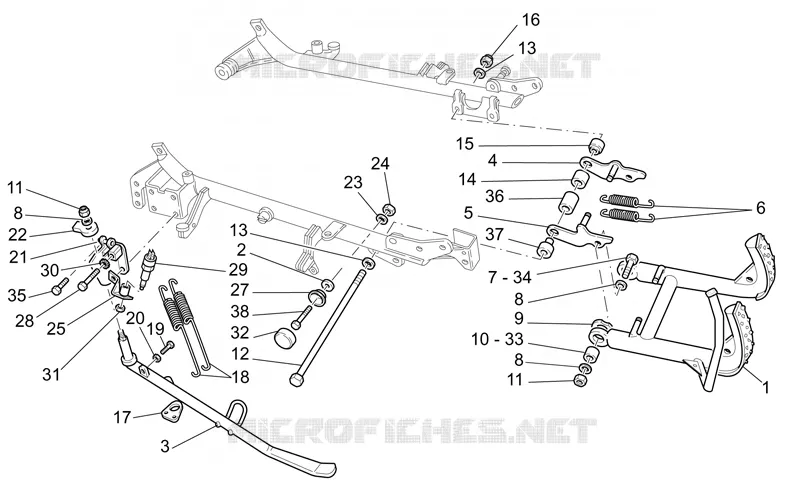

Find the detailed Stands MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for California EV PI

LH Front brake system

Transmission complete I

Exhaust unit

Rear mudguard

Rear wheel

Supply - Oil pump

Rear master cylinder

Double-plate clutch 2nd series

Air box

Generator - Regulator

Fuel vapour recover system

Fuel tank

Saddle-Central bod

Front mudguard

Front lights

Frame

F.fork-R.shock absorber

Toe guard

Transmission cage

Craddle arm-Foot rests

Throttle body

Starter motor cover

Primary gear shaft

Crank-case

Transmission complete II

Timing system

Front wheel

Rear lights

Crankshaft - Piston

Heads

Stands

RH Front brake system

Side cases

Handlebar - Controls

Driven shaft

Front fork

Electrical systeme

Fuel supply

Fuel pump

Rear brake caliper

Windshield

Luggage rack

Gear lever

Single-plate clutch 1st series

Starter motor

Dashboard

Electrical system

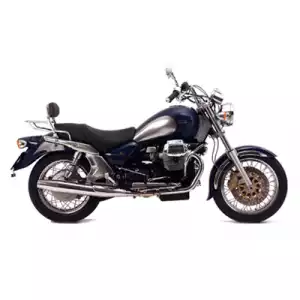

MOTO GUZZI LAVERDA SCARABEO California EV PI 2004
