1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2004
4
Trim
California EV PI
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Craddle arm-Foot rests
by
Starter motor cover
Throttle body
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Throttle assy
GU03112560
£3 285,23 Unit Price incl. VAT
2
Injector kit complete
GU01530504
£994,60 Unit Price incl. VAT
3
Potentiometer
GU01530500
£510,00 Unit Price incl. VAT
4
Tie rod
GU29530562
£53,57 Unit Price incl. VAT
5
Hose
GU30114470
£23,16 Unit Price incl. VAT
6
Hose clamp 61/65,5
GU93305061
£10,04 Unit Price incl. VAT
7
Hose
GU03114370
£14,29 Unit Price incl. VAT
8
RH manifold
GU30115070
£24,23 Unit Price incl. VAT
9
LH manifold
GU30115071
Not Available
10
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
11
Washer 6,4x10x0,7
GU14217901
Not Available
12
screw M6x10
GU98310609
£1,20 Unit Price incl. VAT
13
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
14
Stud bolt
GU96506039
£9,89 Unit Price incl. VAT
15
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
16
Nut
GU92781062
£10,21 Unit Price incl. VAT
17
Gasket
GU28115560
£2,16 Unit Price incl. VAT
18
RH cover chromium plated
GU03113360
£127,93 Unit Price incl. VAT
19
LH cover chromium plated
GU03113460
£68,42 Unit Price incl. VAT
20
screw
GU97202112
£5,23 Unit Price incl. VAT
21
Spacer 4x6x8
GU91180408
£5,23 Unit Price incl. VAT
22
Rubber spacer
GU91551034
£6,66 Unit Price incl. VAT

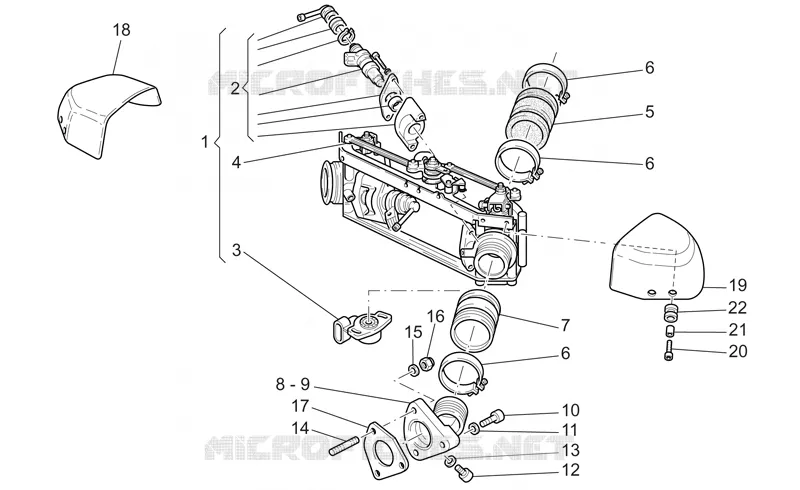

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
