1
Engine displacement
1400
2
Model
AUDACE
3
Year
2016
4
Trim
Audace
5
Parts Catalog

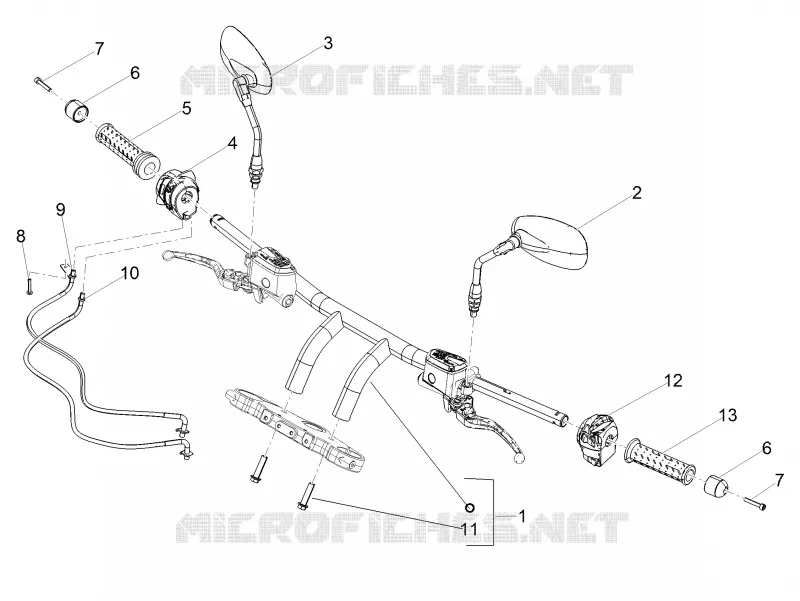

Handlebar - Controls
6
Parts Diagram
Parts Catalog
Secondary air
by
Front master cilinder
Handlebar - Controls
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
1
Handlebar cpl.
2B003358
£349,46 Unit Price incl. VAT
2
LH rearview mirror
2B001691
£88,28 Unit Price incl. VAT
3
RH rearview mirror
2B001690
£88,28 Unit Price incl. VAT
4
RH lights selector
B063030
£209,88 Unit Price incl. VAT
5
Throttle with hand grip
GU01603480
£30,84 Unit Price incl. VAT
6
Anti.v weight, black
AP8104509
£32,14 Unit Price incl. VAT
7
Hex socket screw
GU98610335
£1,26 Unit Price incl. VAT
8
Self-tap screw
978059
£2,47 Unit Price incl. VAT
9
Transmission
2B001646
£23,56 Unit Price incl. VAT
10
Transmission
2B001648
£23,56 Unit Price incl. VAT
11
Pre-impregnated screw M10x40
2B003108
£4,79 Unit Price incl. VAT
12
LH lights selector
887795
£256,36 Unit Price incl. VAT
13
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
