Engine displacement
100
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo 4T E2
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
Top box
by
Rear body II
Rear body I
1
2
3
3
3
4
5
6
7
1
Hinge cover, grey
AP8249951
Not Available
2
Rear fairing, red
AP8258758
Not Available
2
Rear fairing, A.lemon
AP8258479
Not Available
2
Rear fairing, black
AP8258645
Not Available
2
Rear fairing, silver
AP8268113
Not Available
2
Rear fairing, grey
AP8258716
Not Available
2
Rear fairing, grey
AP8268101
Not Available
2
Rear fairing, white
AP8258875
Not Available
2
Rear fairing, red
AP8258345
Not Available
2
Rear fairing, white
AP8268125
Not Available
2
Rear fairing, black
AP8268137
Not Available
2
Rear fairing, blue
AP8258768
Not Available
2
Rear fairing, white
AP8258388
Not Available
2
Rear fairing, V.white
AP8258356
Not Available
2
Rear fairing, blue
AP8258890
Not Available
2
Rear fairing, blue
AP8258401
Not Available
3
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
4
Bag holder hook
AP8239306
Not Available
5
T bush *
AP8121790
£1,88 Unit Price incl. VAT
6
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
7
Washer 5,3X10X1
AP8150177
£0,06 Unit Price incl. VAT

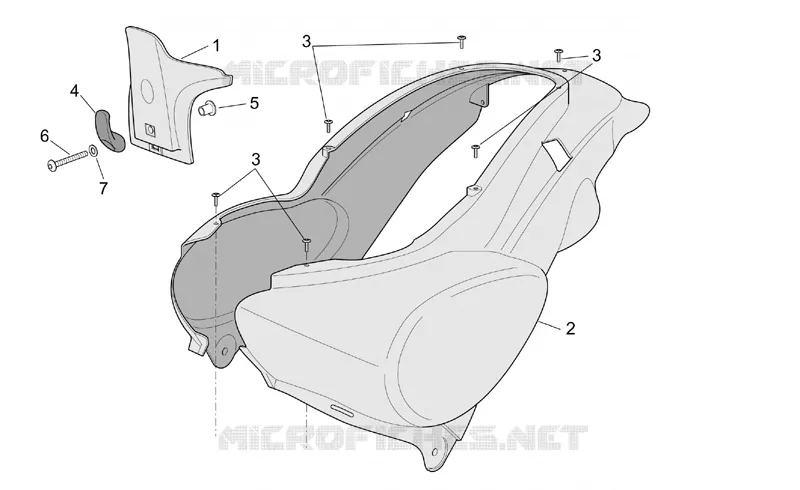

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
