1
Engine displacement
1400
2
Model
AUDACE
3
Year
2017
4
Trim
Audace Carbon
5
Parts Catalog

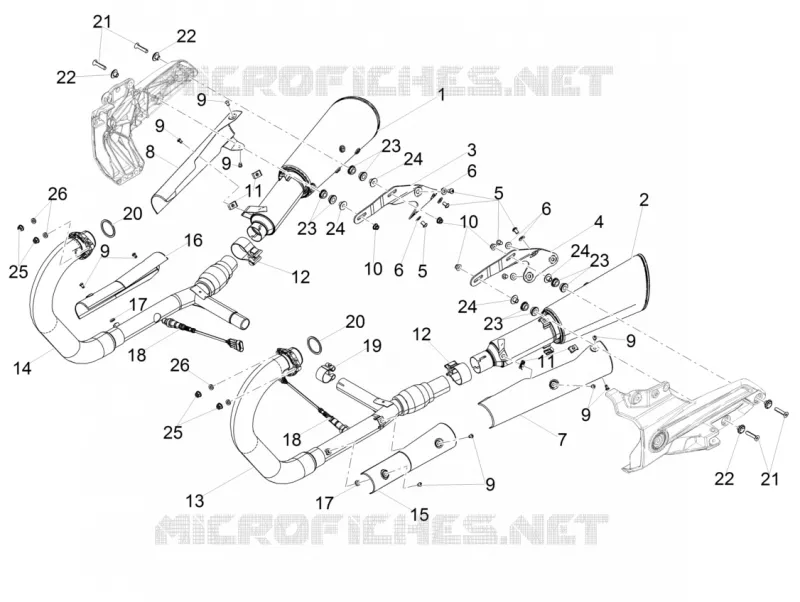

Exhaust pipe
6
Parts Diagram
Parts Catalog
Drive shaft
by
Swing arm
Exhaust pipe
1
2
3
4
5
5
6
6
6
7
8
9
9
9
9
9
9
10
10
11
11
12
12
13
14
15
16
16
17
17
18
18
19
20
20
21
21
22
22
22
23
23
23
23
24
24
24
24
25
25
26
1
RIGHT SILENCER
2B0033285
£2 042,40 Unit Price incl. VAT
2
LEFT SILENCER
2B0033295
£1 140,97 Unit Price incl. VAT
3
Exhaust pipe support clamp DX
2B000366
£64,55 Unit Price incl. VAT
4
Exhaust pipe support clamp SX
2B000367
£63,96 Unit Price incl. VAT
5
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
6
Washer
GU95008308
£1,26 Unit Price incl. VAT
7
PAINTED LH SILENCER PROTECTION
2B0033345
£172,72 Unit Price incl. VAT
8
PAINTED RIGHT SILENCER PROTECTION
2B0033325
£172,72 Unit Price incl. VAT
9
TBEI pre-impregnated screw M6x10
2B002143
£4,74 Unit Price incl. VAT
10
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
D.48 clamp
B063293
£38,41 Unit Price incl. VAT
13
Left exhaust manifold
2B003011
£1 215,16 Unit Price incl. VAT
14
Right exhaust manifold
2B003012
£1 215,16 Unit Price incl. VAT
15
PAINTED LH EXHAUST PIPE PROTECTION
2B0033315
£102,23 Unit Price incl. VAT
16
PAINTED RH EXHAUST PIPE PROTECTION
2B0033305
£102,23 Unit Price incl. VAT
17
Spacer
876879
£10,63 Unit Price incl. VAT
18
Lamda sensor l. 325 mm
584344
£178,32 Unit Price incl. VAT
19
D.37 clamp
B063292
£37,60 Unit Price incl. VAT
20
Exhaust manifold gasket
2B002217
£12,48 Unit Price incl. VAT
21
Coarse hexagonal countersunk screw
B063114
£5,08 Unit Price incl. VAT
22
Bush
887816
£13,16 Unit Price incl. VAT
23
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
24
Bush
AP8121510
£10,88 Unit Price incl. VAT
25
Flanged nut M8
GU92660021
£1,60 Unit Price incl. VAT
26
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
