1
Engine displacement
850
2
Model
850-T5
3
Year
1989
4
Trim
T5 Polizia VecchioTipo
5
Parts Catalog
Handlebar-controls,2nd s.
6
Parts Diagram
Parts Catalog
Handlebar-controls, 1st series
by
Front bumper
Handlebar-controls,2nd s.
1
2
3
4
5
6
7
8
9
10
11
12
12
13
20
21
22
23
23
24
25
26
27
28
29
29
30
31
31
32
33
34
35
36
37
38
1
Handlebar
GU30600310
Not Available
2
LH lights selector
GU28738046
£347,30 Unit Price incl. VAT
3
RH lights selector
GU28750346
Not Available
4
screw
GU98260425
Not Available
5
Bush
GU29608750
Not Available
6
Clutch lever
GU29605550
Not Available
7
LH hand grip
GU29603050
Not Available
8
Splitter cable-RH carbur.
GU29133050
Not Available
9
LH choke cable
GU29134050
£14,71 Unit Price incl. VAT
10
Stop switch
GU39741101
Not Available
11
RH hand grip
GU29603550
Not Available
12
Throttle cable assy
GU29999250
Not Available
13
screw
GU98280410
£0,92 Unit Price incl. VAT
20
Nut
GU92601206
Not Available
21
Hex socket screw M6x16
GU98612316
£1,06 Unit Price incl. VAT
22
Throttle cable
GU28117533
£55,75 Unit Price incl. VAT
23
Splitter
GU30607910
£20,21 Unit Price incl. VAT
24
Ring
GU29132050
Not Available
25
Choke control
GU29133250
Not Available
26
Starter lever
GU29132350
Not Available
27
Washer
GU29132650
£1,43 Unit Price incl. VAT
28
Ring
GU17751100
Not Available
29
Cap
GU12717600
£2,22 Unit Price incl. VAT
30
Bellows
GU23093870
Not Available
31
Hose clamp
GU19133400
Not Available
32
Maintenance
GU17135650
Not Available
33
Throttle cable w/ splitter
GU29117750
£17,86 Unit Price incl. VAT
34
Clutch cable
GU28093045
Not Available
35
Hose clamp
GU61609630
Not Available
35
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
36
Splitter starter cable
GU29132850
£12,66 Unit Price incl. VAT
37
Rubber spacer
GU29132750
£6,38 Unit Price incl. VAT
38
RH rearview mirror
GU28999546
Not Available

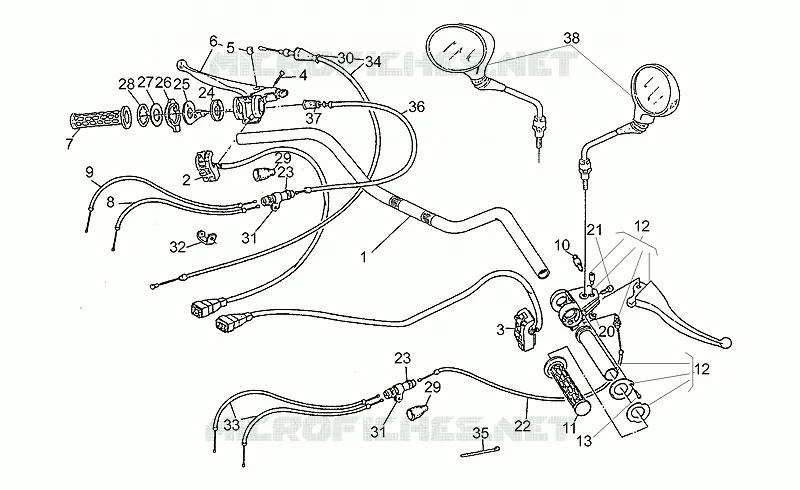

Find the detailed Handlebar-controls,2nd s. MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
