Crankcase for MOTO GUZZI LAVERDA SCARABEO T5 Polizia from 1995

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankcase

1

Crankcase

GU14000765

Not Available

2

Disc

GU12003900

Not Available

3

Stud bolt M8x66

GU96508066

£50,56 Unit Price incl. VAT

4

Stud bolt M8x75

GU96508075

£13,44 Unit Price incl. VAT

5

Washer

GU95004208

£0,70 Unit Price incl. VAT

6

Nut

GU92602208

Not Available

7

Coupling bush

GU12018900

£10,75 Unit Price incl. VAT

8

Pin

GU95512081

£4,34 Unit Price incl. VAT

9

Complete flange

GU14011900

Not Available

9

Flange min.0,2 mm

GU14011901

£50,76 Unit Price incl. VAT

10

Pin

GU12012200

£15,28 Unit Price incl. VAT

11

screw

GU98054425

Not Available

12

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

13

Flange

GU18001150

£13,20 Unit Price incl. VAT

14

screw

GU98310630

Not Available

15

Timing system cover, blank

GU29001453

£51,91 Unit Price incl. VAT

16

Cover gasket

GU12001200

Not Available

17

Gasket ring 28x38x7

GU90402840

£15,29 Unit Price incl. VAT

18

Hex socket screw

GU98622325

£1,02 Unit Price incl. VAT

19

screw M6x35

GU98620335

£1,14 Unit Price incl. VAT

20

Cover

GU18001650

£34,79 Unit Price incl. VAT

21

Sump gasket

GU14003600

£11,04 Unit Price incl. VAT

22

Engine oil sump, blank

GU14003501

Not Available

23

Oil filter union

GU30003800

£46,69 Unit Price incl. VAT

24

Oil unload plug

GU12003702

£12,94 Unit Price incl. VAT

25

Gasket 20,1x28x2

GU95100709

£5,29 Unit Price incl. VAT

26

screw

GU98052390

£1,24 Unit Price incl. VAT

27

Washer 6,15x11x0,8

GU95004206

Not Available

28

Oil plug

GU30004910

£10,85 Unit Price incl. VAT

29

Gasket

GU12011800

£3,74 Unit Price incl. VAT

30

Complete flange

GU12011400

Not Available

30

Flange min.0,4 mm

GU12011402

£61,15 Unit Price incl. VAT

30

Flange min.0,6 mm

GU12011403

£61,15 Unit Price incl. VAT

30

Flange min.0,2 mm

GU12011401

£63,46 Unit Price incl. VAT

31

Pin

GU12011700

£14,52 Unit Price incl. VAT

32

Gasket ring

GU90405367

£35,53 Unit Price incl. VAT

33

Engine gasket set

GU28999050

Not Available

34

Engine oil seal kit

GU17999550

Not Available

35

Hex socket screw M6x55

GU98620355

£1,51 Unit Price incl. VAT

36

Motor oil flange

GU14003240

Not Available

37

O-ring 17,86X2,62

GU90706178

£0,98 Unit Price incl. VAT

38

Engine w/o gearbox

GU28991046

Not Available

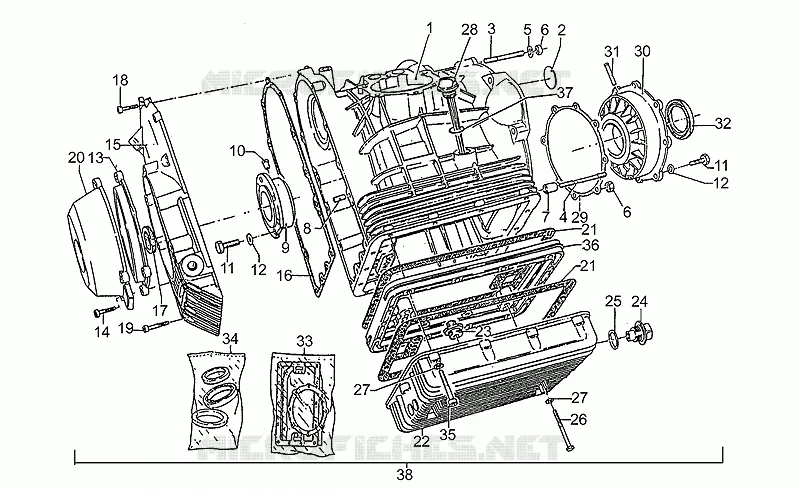

Find the detailed Crankcase MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
