1
Engine displacement
850
2
Model
850-T5
3
Year
1995
4
Trim
T5 Polizia
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Starter motor
by
Transmission cage
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
1
Oil pump
GU30146400
Not Available
2
Transmission key
GU13148300
Not Available
3
Roller bearing 10x22x20
GU92252210
£53,10 Unit Price incl. VAT
4
Oil pump gear
GU30147700
£46,15 Unit Price incl. VAT
5
Nut
GU92602308
£0,96 Unit Price incl. VAT
6
Spring washer
GU95120085
£1,02 Unit Price incl. VAT
7
screw
GU98622430
£1,58 Unit Price incl. VAT
8
Oil filter
GU14152200
£13,44 Unit Price incl. VAT
9
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
10
Plate
GU95187006
£3,68 Unit Price incl. VAT
11
Oil filter
GU30153000
£18,98 Unit Price incl. VAT
12
Oil valve cpl.
GU03158200
£150,78 Unit Price incl. VAT
12
Oil valve cpl.
GU14158200
Not Available
13
Valve body
GU10158701
£72,68 Unit Price incl. VAT
13
Valve body
GU30158701
£81,37 Unit Price incl. VAT
14
Piston
GU30150900
£38,18 Unit Price incl. VAT
14
Piston
GU12150900
Not Available
15
Valve spring
GU94321072
£5,23 Unit Price incl. VAT
15
Spring
GU94321079
£30,52 Unit Price incl. VAT
16
Washer
GU30158900
£8,10 Unit Price incl. VAT
16
Bottom
GU12150700
Not Available
17
Cover
GU12159000
Not Available
17
Cover
GU30159000
Not Available
18
Washer 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
18
Washer 14,5X20X1
GU95100523
£2,30 Unit Price incl. VAT
19
Cup
GU14158800
Not Available
19
Cup
GU30158800
£10,73 Unit Price incl. VAT
20
Pressure sensor
GU17768750
£30,62 Unit Price incl. VAT
21
Gasket 12,25
GU12006400
£1,63 Unit Price incl. VAT
22
Cap
GU12717600
£2,22 Unit Price incl. VAT
23
Pipe
GU01153600
Not Available
24
screw
GU95990037
£20,40 Unit Price incl. VAT
25
Gasket 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
26
Gasket
GU25656102
£1,57 Unit Price incl. VAT
27
pipe
GU28157450
Not Available
28
Hose clamp
GU28157850
Not Available
29
Hose clamp
GU93305017
£10,24 Unit Price incl. VAT
30
Breather pipe
GU00823856080
Not Available
31
Breather pipe
GU01007200
Not Available
32
Gasket
GU25656102
£1,57 Unit Price incl. VAT
33
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
34
Gasket
GU12007600
£1,61 Unit Price incl. VAT
35
Stop ring
GU65061300
£2,23 Unit Price incl. VAT
36
Joint
GU28153960
£29,51 Unit Price incl. VAT
37
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
38
Oil breather valve
GU28150560
Not Available
39
Hose clamp
GU12157800
£7,64 Unit Price incl. VAT
40
Washer 6,15x11x0,8
GU95004206
Not Available

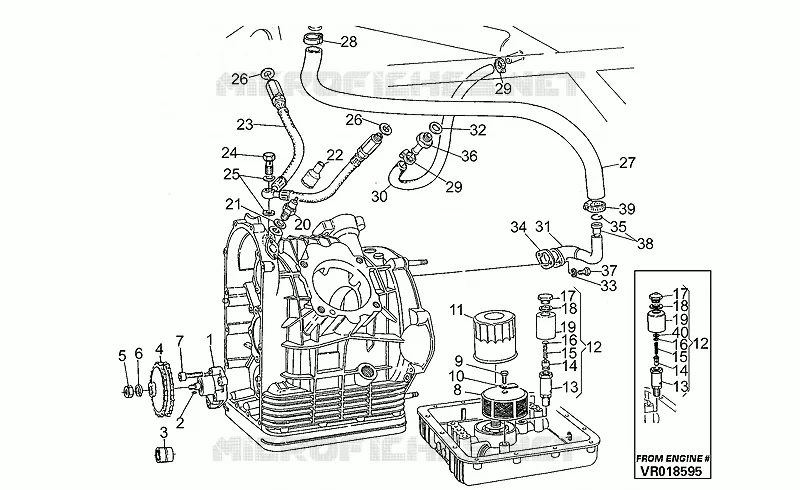

Find the detailed Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
